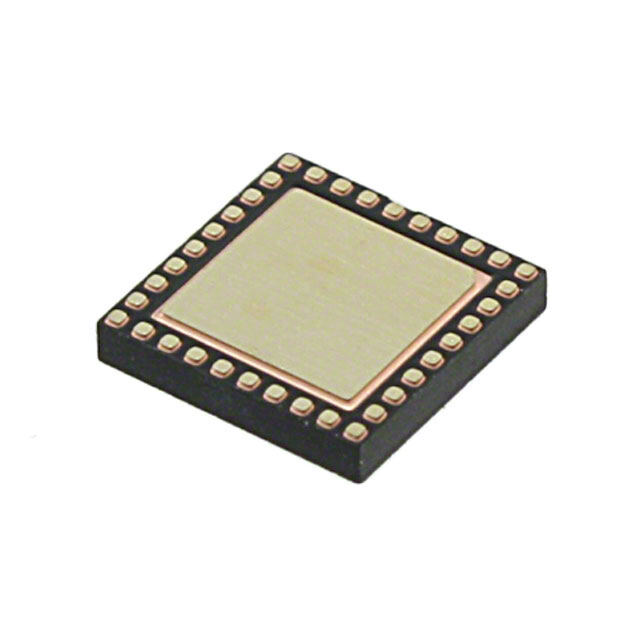

PIC32MX120F032C-50I/TL
RoHS
RoHS compliant
RoHS compliantPackage 36-VFTLA Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 32KB FLASH 36VTLA
PDF
/
Inventory: 8361
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 5mm
Length 5mm
Height Seated (Max) 1mm
Technical
Number of UART Channels 2
Screening Level TS 16949
CPU Family PIC
On Chip Program ROM Width 8
DAC Channels NO
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 12x10b
Bit Size 32
Supply Current-Max 30mA
Connectivity I2C, IrDA, LINbus, PMP, SPI, UART/USART
Program Memory Size 32KB 32K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Core Processor MIPS32? M4K?
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 2.3V~3.6V
RAM Size 8K x 8
Number of I/O 25
Oscillator Type Internal
Interface I2C, IrDA, LIN, SPI, UART, USART
Supply Voltage-Max (Vsup) 3.6V
Qualification Status Not Qualified
JESD-30 Code S-XBCC-B36
Base Part Number PIC32MX120F032C
Time@Peak Reflow Temperature-Max (s) 40
Frequency 50MHz
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form BUTT
Terminal Position BOTTOM
Technology CMOS
Subcategory Microcontrollers
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 36
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Series PIC? 32MX
Published 2012
Packaging Tube
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 36-VFTLA Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
