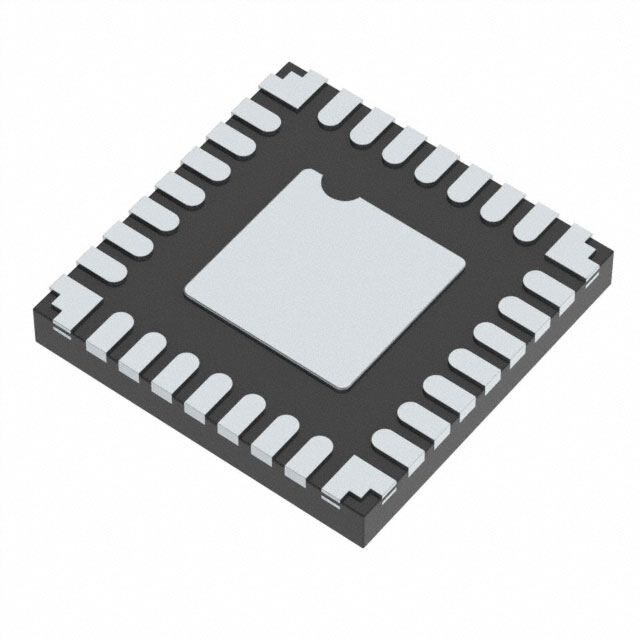

PIC32MM0032GPL028-E/M6
RoHS
/
Package 28-UFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MCU 32-Bit PIC32MM PIC Core RISC 32Kbyte Flash 8Kbyte SRAM 2.5V/3.3V 28-Pin UQFN SMD Tube
PDF
/
Buying Options
Total Price: USD $1.65
Unit Price: USD $1.6456
≥1 USD $1.6456
≥10 USD $1.5048
≥100 USD $1.3552
Inventory: 511
Minimum: 1
-
+
Technical Details
Dimensions
Width 4mm
Length 4mm
Height Seated (Max) 0.6mm
Technical
Screening Level TS 16949
On Chip Program ROM Width 8
DAC Channels YES
PWM Channels YES
DMA Channels NO
Has ADC YES
Data Converter A/D 12x10/12b; D/A 1x5b
Bit Size 32
Connectivity IrDA, LINbus, SPI, UART/USART
Program Memory Size 32KB 32K x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 25MHz
Peripherals Brown-out Detect/Reset, HLVD, I2S, POR, PWM, WDT
Core Processor MIPS32? microAptiv?
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 2V~3.6V
RAM Size 8K x 8
Speed 25MHz
Number of I/O 22
Oscillator Type Internal
Supply Voltage-Min (Vsup) 2V
Supply Voltage-Max (Vsup) 3.6V
JESD-30 Code S-PQCC-N28
Base Part Number PIC32MM0032GPL
Reach Compliance Code compliant
Terminal Pitch 0.4mm
Supply Voltage 3.3V
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Additional Feature ADC ALSO AVAILABLE WITH 10-BIT
Number of Terminations 28
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PIC? 32MM
Packaging Tube
Operating Temperature -40°C~125°C TA
Physical
Surface Mount YES
Package / Case 28-UFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
