PIC24FV16KM104T-I/ML
RoHS
RoHS compliant

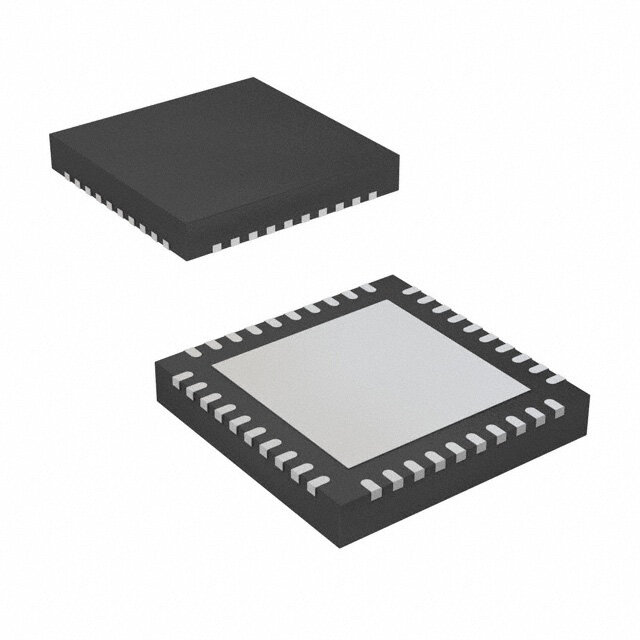

RoHS compliantPackage 44-VQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 16BIT 16KB FLASH 44QFN
PDF
/
Inventory: 4194
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 44-VQFN Exposed Pad
Number of Pins 44
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2013
Series PIC? XLP? 24F
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 44
Additional Feature IT ALSO OPERATES 2V AT 8MHZ
Subcategory Microcontrollers
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Supply Voltage 5V
Frequency 32MHz
Base Part Number PIC24FV16KM104
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 5.5V
Power Supplies 2.5/5V
Interface I2C, SPI, UART
Memory Size 16kB
Oscillator Type Internal
Number of I/O 37
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 2V~5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor PIC
Peripherals Brown-out Detect/Reset, LVD, POR, PWM, WDT
Program Memory Type FLASH
Core Size 16-Bit
Program Memory Size 16KB 5.5K x 24
Connectivity I2C, IrDA, LINbus, SPI, UART/USART
Supply Current-Max 10mA
Bit Size 16
Data Converter A/D 22x10b/12b
Has ADC YES
DMA Channels NO
PWM Channels YES
DAC Channels NO
Number of Timers/Counters 3
ROM (words) 5461
EEPROM Size 512 x 8
On Chip Program ROM Width 24
Low Power Mode NO
Format FIXED-POINT
Integrated Cache NO
RAM (words) 512
Number of Serial I/Os 1
Number of External Interrupts 3
On Chip Data RAM Width 16
Dimensions
Height Seated (Max) 1mm
Length 8mm
Width 8mm
Compliance
RoHS Status ROHS3 Compliant
