PIC24F16KM204-I/PT
RoHS
RoHS compliant

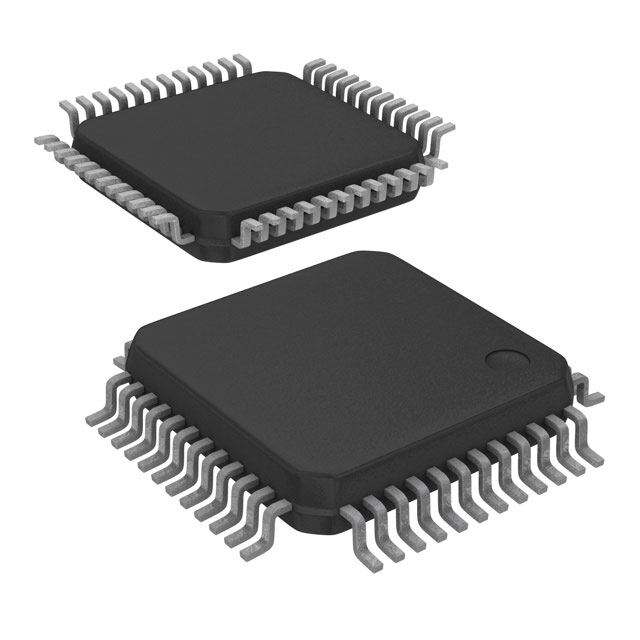

RoHS compliantPackage 44-TQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 16BIT 16KB FLASH 44TQFP
PDF
/
Buying Options
Total Price: USD $3.49
Unit Price: USD $3.4936
≥1 USD $3.4936
≥10 USD $3.1944
≥100 USD $2.8952
Inventory: 292
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
On Chip Data RAM Width 16
Number of External Interrupts 3
Number of Serial I/Os 2
Number of ADC Channels 22
Integrated Cache NO
Format FIXED-POINT
Low Power Mode NO
On Chip Program ROM Width 24
EEPROM Size 512 x 8
Number of Timers/Counters 1
PWM Channels YES
Data Bus Width 16b
DMA Channels NO
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 22x10b/12b; D/A 2x8b
Bit Size 16
Connectivity I2C, IrDA, LINbus, SPI, UART/USART
Program Memory Size 16KB 5.5K x 24
Core Size 16-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, LVD, POR, PWM, WDT
Core Processor PIC
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
RAM Size 2K x 8
Number of I/O 38
Oscillator Type Internal
Memory Size 16kB
Interface UART
Supply Voltage-Min (Vsup) 3V
Power Supplies 2/3.3V
Supply Voltage-Max (Vsup) 3.6V
Qualification Status Not Qualified
Base Part Number PIC24F16KM204
Frequency 32MHz
Terminal Pitch 0.8mm
Supply Voltage 3.3V
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Microcontrollers
Terminal Finish Matte Tin (Sn) - annealed
Number of Terminations 44
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series PIC? XLP? 24F
Published 2011
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 44
Surface Mount YES
Package / Case 44-TQFP
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
