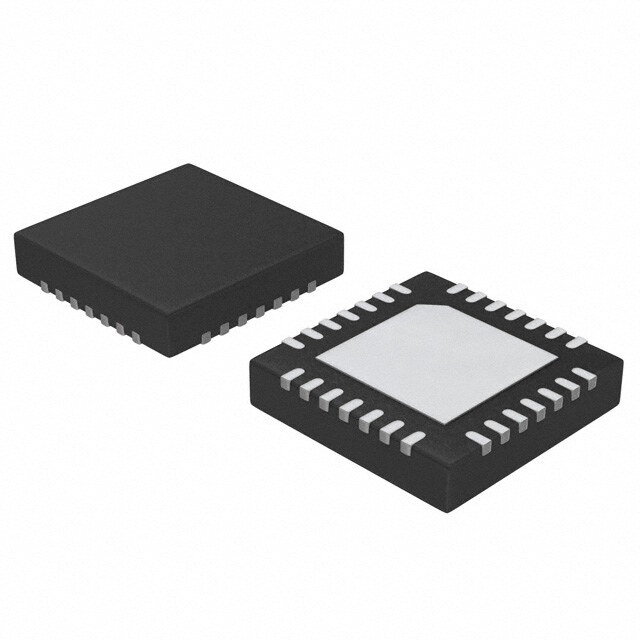

PIC24F08KL402-I/MQ
RoHS
RoHS compliant
RoHS compliantPackage 28-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 16BIT 8KB FLASH 28QFN
PDF
/
Inventory: 7885
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type Surface Mount
Package / Case 28-VFQFN Exposed Pad
Surface Mount YES
Number of Pins 28
Technical
Operating Temperature -40°C~85°C TA
Packaging Tube
Published 2011
Series PIC? XLP? 24F
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 28
ECCN Code 3A991.A.2
Terminal Finish Matte Tin (Sn) - annealed
Additional Feature ALSO OPERATES 1.8V AT 8MHZ
Subcategory Microcontrollers
Technology CMOS
Terminal Position QUAD
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Frequency 32MHz
Base Part Number PIC24F08KL402
Pin Count 28
Operating Supply Voltage 3V
Supply Voltage-Max (Vsup) 3.6V
Interface I2C, IrDA, LIN, SPI, UART, USART
Memory Size 8kB
Oscillator Type Internal
Number of I/O 24
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Core Processor PIC
Peripherals Brown-out Detect/Reset, HLVD, POR, PWM, WDT
Program Memory Type FLASH
Core Size 16-Bit
Program Memory Size 8KB 2.75K x 24
Connectivity I2C, IrDA, LINbus, SPI, UART/USART
Supply Current-Max 12mA
Bit Size 16
Data Converter A/D 12x10b
Watchdog Timer Yes
Has ADC YES
DMA Channels NO
Data Bus Width 16b
PWM Channels YES
DAC Channels NO
Number of Timers/Counters 4
ROM (words) 2730
EEPROM Size 512 x 8
On Chip Program ROM Width 24
CPU Family PIC
Dimensions
Height Seated (Max) 1mm
Length 5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
