PIC24EP128GP206-E/PT
RoHS
RoHS compliant
RoHS compliantPackage 64-TQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MCU 16-bit PIC24E PIC Harvard 128KB Flash 3.3V Automotive 64-Pin TQFP Tray
PDF
/
Inventory: 9840
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 64-TQFP
Number of Pins 64
Weight 360.605934mg
Technical
Operating Temperature -40°C~125°C TA
Packaging Tray
Published 2013
Series Automotive, AEC-Q100, PIC? 24EP
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 64
ECCN Code 3A001.A.3
Terminal Finish Matte Tin (Sn)
Subcategory Microcontrollers
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 3.3V
Frequency 70MHz
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number PIC24EP128GP206
Pin Count 64
Operating Supply Voltage 3.3V
Supply Voltage-Max (Vsup) 3.6V
Interface I2C, IrDA, LIN, SPI, UART, USART
Memory Size 128kB
Oscillator Type Internal
Number of I/O 53
Speed 60 MHz
RAM Size 8K x 16
Voltage - Supply (Vcc/Vdd) 3V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Core Processor PIC
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type FLASH
Core Size 16-Bit
Program Memory Size 128KB 43K x 24
Connectivity I2C, IrDA, LINbus, SPI, UART/USART
Bit Size 16
Data Converter A/D 16x10b/12b
Watchdog Timer Yes
Has ADC YES
DMA Channels YES
Data Bus Width 16b
PWM Channels YES
DAC Channels NO
Number of Timers/Counters 5
ROM (words) 43690
On Chip Program ROM Width 24
CPU Family PIC
Dimensions
Height Seated (Max) 1.2mm
Length 10mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant

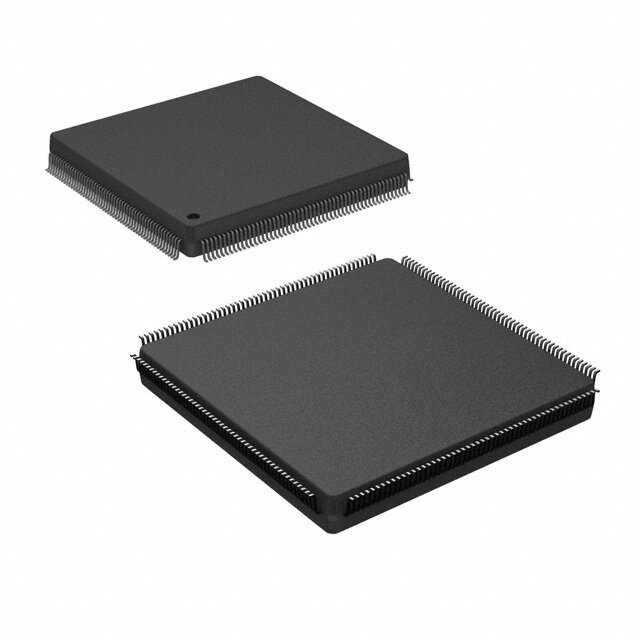

Alternative Model
