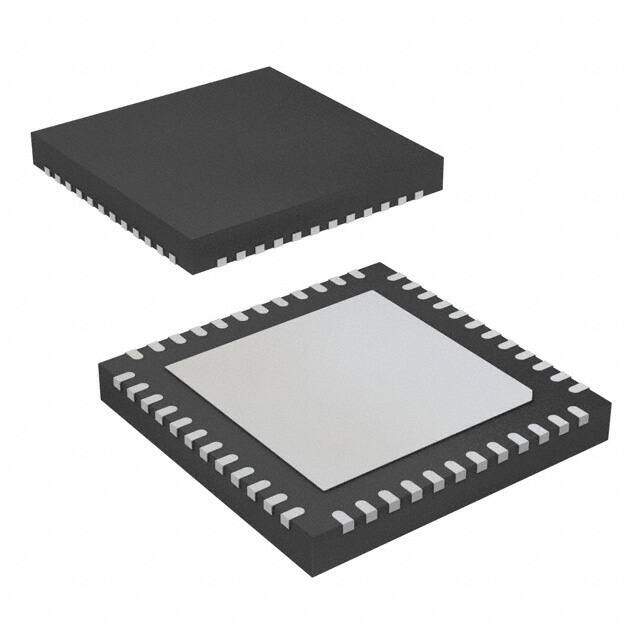

PIC18LF55K42-E/MV
RoHS
RoHS compliant
RoHS compliantPackage 48-UFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 8BIT 32KB FLASH 48UQFN
PDF
/
Buying Options
Total Price: USD $2.17
Unit Price: USD $2.1736
≥1 USD $2.1736
≥10 USD $1.9976
≥100 USD $1.804
Inventory: 1840
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 6mm
Length 6mm
Height Seated (Max) 0.55mm
Technical
Screening Level TS 16949
On Chip Program ROM Width 16
EEPROM Size 256 x 8
DAC Channels YES
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 43x12b; D/A 1x5b
Bit Size 8
Connectivity I2C, LINbus, SPI, UART/USART
Program Memory Size 32KB 16K x 16
Core Size 8-Bit
Program Memory Type FLASH
Clock Frequency 64MHz
Peripherals Brown-out Detect/Reset, LVD, POR, PWM, WDT
Core Processor PIC
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
RAM Size 2K x 8
Speed 64MHz
Number of I/O 44
Oscillator Type Internal
Supply Voltage-Min (Vsup) 2.7V
Supply Voltage-Max (Vsup) 3.6V
JESD-30 Code S-PQCC-N48
Base Part Number PIC18LF55K42
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.4mm
Supply Voltage 3V
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
HTS Code 8542.31.00.01
Additional Feature IT ALSO OPERATES AT 2.5V MIN AT 32 MHZ AND 1.8V MIN AT 16 MHZ
Terminal Finish Matte Tin (Sn)
Number of Terminations 48
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series PIC? XLP? 18K
Published 2018
Packaging Tube
Operating Temperature -40°C~125°C TA
Physical
Surface Mount YES
Package / Case 48-UFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
