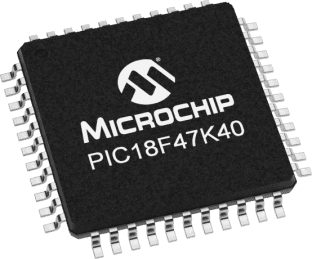

PIC18LF47K40T-E/PTVAO
RoHS
/
Package 44-TQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
128KB FLASH 4KB RAM 1KB EE 10B A
PDF
/
Inventory: 934
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 44-TQFP
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TA
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100, PIC? XLP? 18K
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 44
Additional Feature IT ALSO OPERATES AT 2.5V MIN AT 32 MHZ AND 1.8V MIN AT 16 MHZ
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Supply Voltage 3.3V
Terminal Pitch 0.8mm
Reach Compliance Code compliant
JESD-30 Code S-PQFP-G44
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 3V
Oscillator Type Internal
Number of I/O 36
Speed 64MHz
RAM Size 3.6K x 8
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor PIC
Peripherals Brown-out Detect/Reset, LVD, POR, PWM, WDT
Clock Frequency 64MHz
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 128KB 64K x 16
Connectivity I2C, LINbus, SPI, UART/USART
Bit Size 8
Data Converter A/D 35x10b; D/A 1x5b
Has ADC YES
DMA Channels NO
PWM Channels YES
DAC Channels YES
EEPROM Size 1K x 8
On Chip Program ROM Width 16
Screening Level TS 16949
Dimensions
Height Seated (Max) 1.2mm
Length 10mm
Width 10mm
