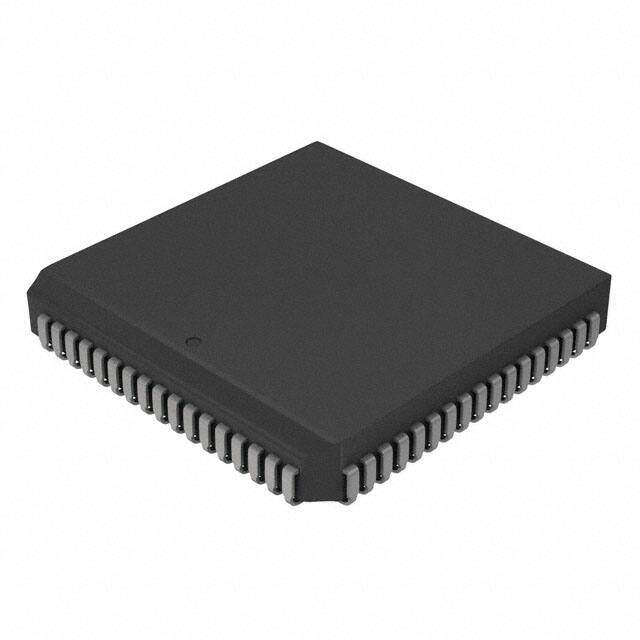

PIC18LC858-I/L
RoHS
RoHS compliant
RoHS compliantPackage 84-LCC (J-Lead)
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 8BIT 32KB OTP 84PLCC
PDF
/
Inventory: 6806
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 84-LCC (J-Lead)
Surface Mount YES
Number of Pins 84
Technical
Operating Temperature -40°C~85°C TA
Packaging Tube
Published 2000
Series PIC? 18C
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 84
ECCN Code 3A991.A.2
Terminal Finish Matte Tin (Sn)
Additional Feature OPERATES AT 2.5V MINIMUM SUPPLY
Max Power Dissipation 1W
Technology CMOS
Terminal Position QUAD
Terminal Form J BEND
Peak Reflow Temperature (Cel) 245
Supply Voltage 5V
Terminal Pitch 1.27mm
Frequency 40MHz
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number PIC18LC858
Pin Count 84
Supply Voltage-Max (Vsup) 5.5V
Interface CAN, I2C, SPI, UART, USART
Memory Size 32kB
Oscillator Type External
Number of I/O 68
RAM Size 1.5K x 8
Memory Type EPROM
Voltage - Supply (Vcc/Vdd) 2.5V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor PIC
Peripherals Brown-out Detect/Reset, LVD, POR, PWM, WDT
Program Memory Type OTP
Core Size 8-Bit
Program Memory Size 32KB 16K x 16
Connectivity CANbus, I2C, SPI, UART/USART
Bit Size 8
Data Converter A/D 16x10b
Has ADC YES
DMA Channels NO
Data Bus Width 8b
PWM Channels YES
DAC Channels NO
Number of Timers/Counters 4
On Chip Program ROM Width 16
Dimensions
Length 29.31mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
