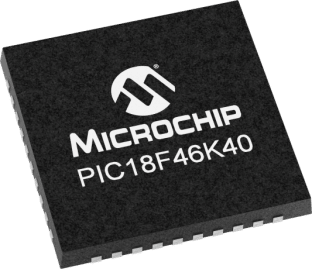

PIC18F46K40T-E/MVVAO
RoHS
/
Package 40-UFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
64KB FLASH 4KB RAM 1KB EE 10B AD
PDF
/
Buying Options
Total Price: USD $5.4
Unit Price: USD $5.400477
≥1 USD $5.400477
≥10 USD $5.094785
≥100 USD $4.806403
≥500 USD $4.534344
≥1000 USD $4.277681
Inventory: 1508
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 40-UFQFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TA
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100, PIC? XLP? 18K
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 40
Additional Feature ALSO OPERATES AT 2.3V MINIMUM SUPPLY AT 16 MHZ
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Supply Voltage 3V
Terminal Pitch 0.4mm
Reach Compliance Code compliant
JESD-30 Code S-PQCC-N40
Supply Voltage-Max (Vsup) 5.5V
Supply Voltage-Min (Vsup) 2.5V
Oscillator Type Internal
Number of I/O 36
Speed 64MHz
RAM Size 3.6K x 8
Voltage - Supply (Vcc/Vdd) 2.3V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor PIC
Peripherals Brown-out Detect/Reset, LVD, POR, PWM, WDT
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 64KB 32K x 16
Connectivity I2C, LINbus, SPI, UART/USART
Bit Size 8
Data Converter A/D 35x10b; D/A 1x5b
Has ADC YES
DMA Channels NO
DAC Channels YES
ROM (words) 32768
EEPROM Size 1K x 8
On Chip Program ROM Width 16
CPU Family PIC
Low Power Mode YES
Screening Level ISO/TS-16949
Integrated Cache NO
Number of Timers 4
Number of External Interrupts 3
On Chip Data RAM Width 8
Dimensions
Height Seated (Max) 0.55mm
Length 5mm
Width 5mm
