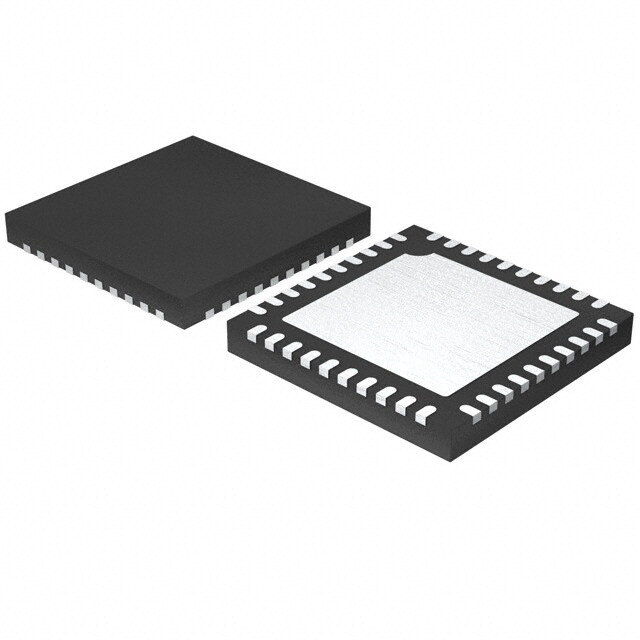

PIC18F45Q10-E/MP
RoHS
/
Package 40-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
32KB FLASH 2KB RAM 256B EEPROM 1
PDF
/
Inventory: 4833
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Dimensions
Width 5mm
Length 5mm
Height Seated (Max) 0.9mm
Technical
Screening Level TS 16949
On Chip Program ROM Width 16
EEPROM Size 256 x 8
DAC Channels YES
PWM Channels YES
DMA Channels NO
Has ADC YES
Data Converter A/D 35x10b; D/A 1x5b
Bit Size 8
Connectivity I2C, LINbus, SPI, UART/USART
Program Memory Size 32KB 32K x 8
Core Size 8-Bit
Program Memory Type FLASH
Clock Frequency 64MHz
Peripherals Brown-out Detect/Reset, DMA, HLVD, POR, PWM, WDT
Core Processor PIC
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.8V~5.5V
RAM Size 2.25K x 8
Speed 64MHz
Number of I/O 36
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.8V
Supply Voltage-Max (Vsup) 5.5V
JESD-30 Code S-PQCC-N40
Terminal Pitch 0.4mm
Supply Voltage 3V
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Number of Terminations 40
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PIC? XLP? 18Q
Packaging Tube
Operating Temperature -40°C~125°C TA
Physical
Surface Mount YES
Package / Case 40-VFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 5 Weeks
