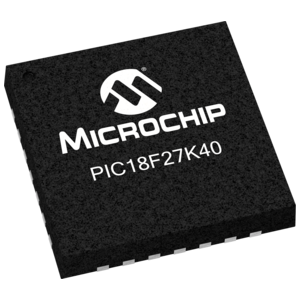

PIC18F27K40T-I/MLVAO
RoHS
/
Package 28-VQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
128KB FLASH 4KB RAM 1KB EE 10B A
PDF
/
Buying Options
Total Price: USD $40.6
Unit Price: USD $40.596876
≥1 USD $40.596876
≥10 USD $38.298928
≥100 USD $36.131071
≥500 USD $34.085915
≥1000 USD $32.156528
Inventory: 1183
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 28-VQFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100, PIC? XLP? 18K
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 28
Additional Feature ALSO OPERATES WITH 2.5VMIN @ 32MHZ AND 2.3VMIN @ 16MHZ
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Terminal Pitch 0.65mm
Reach Compliance Code compliant
JESD-30 Code S-XQCC-N28
Supply Voltage-Max (Vsup) 5.5V
Supply Voltage-Min (Vsup) 3V
Oscillator Type Internal
Number of I/O 25
Speed 64MHz
RAM Size 3.6K x 8
Voltage - Supply (Vcc/Vdd) 2.3V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor PIC
Peripherals Brown-out Detect/Reset, LVD, POR, PWM, WDT
Clock Frequency 64MHz
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 128KB 64K x 16
Connectivity I2C, LINbus, SPI, UART/USART
Bit Size 8
Data Converter A/D 24x10b; D/A 1x5b
Has ADC YES
DMA Channels NO
PWM Channels YES
DAC Channels YES
EEPROM Size 1K x 8
On Chip Program ROM Width 16
Screening Level AEC-Q100; TS 16949
Dimensions
Height Seated (Max) 1mm
Length 6mm
Width 6mm
