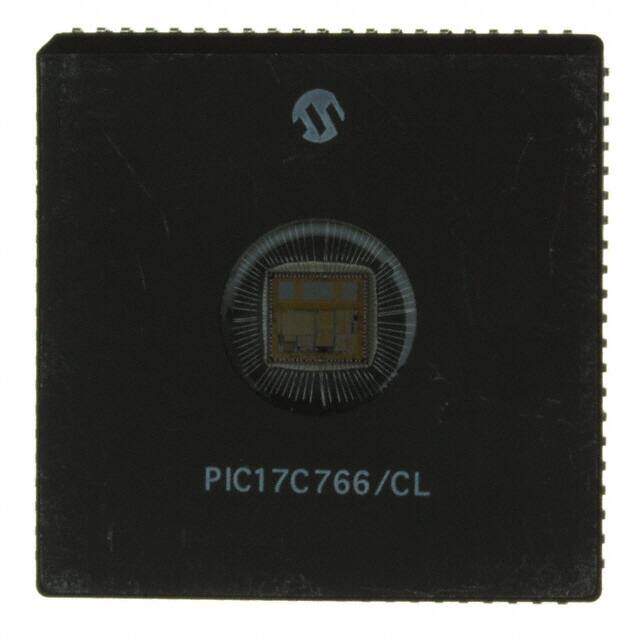

PIC17C766/CL
RoHS
RoHS compliant
RoHS compliantPackage 84-CLCC Window (J-Lead)
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 8BIT 32KB EPROM 84CERQUAD
PDF
/
Inventory: 7832
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 84-CLCC Window (J-Lead)
Number of Pins 84
Technical
Operating Temperature 0°C~70°C TA
Packaging Tube
Published 2009
Series PIC? 17C
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 84
Terminal Finish Matte Tin (Sn)
Subcategory Microcontrollers
Max Power Dissipation 1W
Technology CMOS
Terminal Position QUAD
Terminal Form J BEND
Supply Voltage 5V
Terminal Pitch 1.27mm
Frequency 33MHz
Base Part Number PIC17C766
Pin Count 84
Power Supplies 5V
Interface I2C, RS-232, SCI, SPI, SSP, UART, USART
Memory Size 32kB
Oscillator Type External
Number of I/O 66
RAM Size 902 x 8
Memory Type EPROM
Voltage - Supply (Vcc/Vdd) 4.5V~5.5V
Core Processor PIC
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type EPROM, UV
Core Size 8-Bit
Program Memory Size 32KB 16K x 16
Connectivity I2C, SPI, UART/USART
Supply Current-Max 50mA
Bit Size 8
Data Converter A/D 16x10b
Watchdog Timer Yes
Access Time 33 μs
Data Bus Width 8b
Number of Timers/Counters 4
CPU Family PIC
ROM Programmability UVPROM
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
