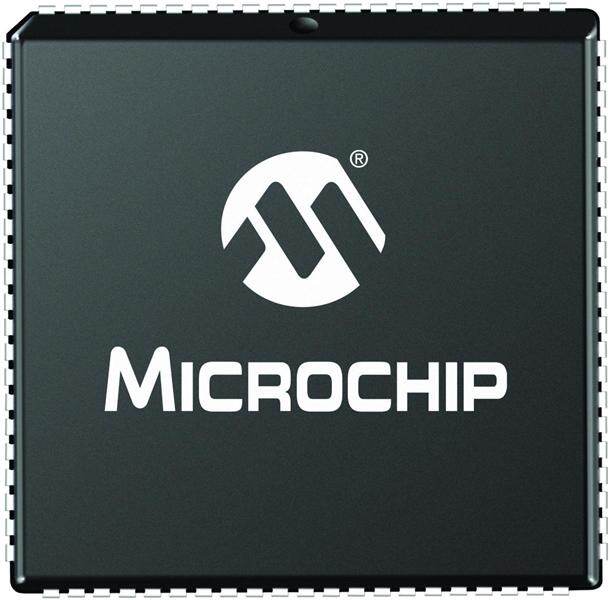

PIC17C762T-16E/L
RoHS
/
Package 84-LCC (J-Lead)
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
8-bit Microcontrollers - MCU 16MHz 8K EPRM
PDF
/
Inventory: 2880
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Length 24.23mm
Height Seated (Max) 4.57mm
Technical
On Chip Program ROM Width 16
Address Bus Width 16
Number of Timers/Counters 8
DAC Channels NO
PWM Channels YES
Data Bus Width 8b
DMA Channels NO
Has ADC YES
Access Time 16 μs
Data Converter A/D 16x10b
Bit Size 8
Connectivity I2C, SPI, UART/USART
Program Memory Size 16KB 8K x 16
Core Size 8-Bit
Program Memory Type OTP
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor PIC
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 4.5V~5.5V
Memory Type EPROM
RAM Size 678 x 8
Number of I/O 66
Oscillator Type External
Memory Size 8kB
Interface I2C, RS-232, SCI, SPI, UART, USART
Supply Voltage-Min (Vsup) 4.5V
Supply Voltage-Max (Vsup) 5.5V
Qualification Status Not Qualified
Pin Count 84
Base Part Number PIC17C762
Time@Peak Reflow Temperature-Max (s) 40
Frequency 16MHz
Terminal Pitch 1.27mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 245
Terminal Form J BEND
Terminal Position QUAD
Technology CMOS
Terminal Finish Matte Tin (Sn)
Number of Terminations 84
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Series PIC? 17C
Published 2000
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TA
Physical
Surface Mount YES
Package / Case 84-LCC (J-Lead)
Mounting Type Surface Mount
