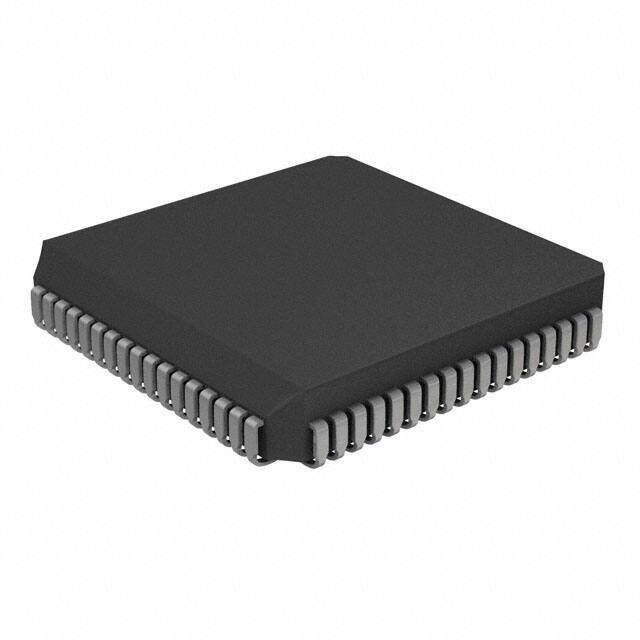

PIC17C752-33/L
RoHS
RoHS compliant
RoHS compliantPackage 68-LCC (J-Lead)
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
8-bit Microcontrollers - MCU 16KB 678 RAM 50 I/O
PDF
/
Buying Options
Total Price: USD $12.77
Unit Price: USD $12.7688
≥1 USD $12.7688
≥10 USD $12.2936
≥100 USD $11.809688
Inventory: 110
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 24.33mm
Length 24.33mm
Height 4.06mm
Technical
Number of I2C Channels 1
Number of PWM Channels 3
Number of UART Channels 2
CPU Family PIC
Number of Timers/Counters 4
DAC Channels NO
Data Bus Width 8b
DMA Channels NO
Has ADC YES
Access Time 33 μs
Watchdog Timer Yes
Data Converter A/D 12x10b
Bit Size 8
Connectivity I2C, SPI, UART/USART
Program Memory Size 16KB 8K x 16
Core Size 8-Bit
Program Memory Type OTP
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor PIC
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 4.5V~5.5V
RAM Size 454 x 8
Number of I/O 50
Oscillator Type External
Memory Size 16kB
Interface I2C, RS-232, SCI, SPI, UART, USART
Power Supplies 5V
Supply Voltage-Max (Vsup) 6V
Pin Count 68
Base Part Number PIC17C752
Time@Peak Reflow Temperature-Max (s) 40
Frequency 33MHz
Supply Voltage 5V
Peak Reflow Temperature (Cel) 245
Terminal Form J BEND
Terminal Position QUAD
Technology CMOS
Max Power Dissipation 1W
Subcategory Microcontrollers
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 68
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series PIC? 17C
Published 1997
Packaging Tube
Operating Temperature 0°C~70°C TA
Physical
Number of Pins 68
Surface Mount YES
Package / Case 68-LCC (J-Lead)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
