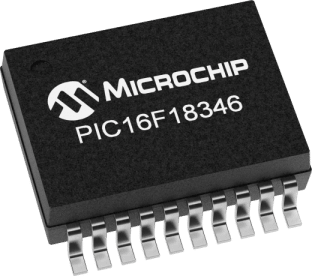

PIC16LF18346T-E/SSVAO
RoHS
RoHS compliant
RoHS compliantPackage 20-SSOP (0.209, 5.30mm Width)
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
28KB 2KB RAM 256B EEPROM 10B ADC
PDF
/
Inventory: 7804
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 20-SSOP (0.209, 5.30mm Width)
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TA
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100, PIC? XLP? 16F
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 20
Terminal Finish Matte Tin (Sn)
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 3V
Terminal Pitch 0.65mm
Reach Compliance Code compliant
Time@Peak Reflow Temperature-Max (s) 30
JESD-30 Code R-PDSO-G20
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 1.8V
Oscillator Type Internal
Number of I/O 18
Speed 32MHz
RAM Size 2K x 8
Voltage - Supply (Vcc/Vdd) 1.8V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor PIC
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Clock Frequency 32MHz
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 28KB 16K x 14
Connectivity I2C, LINbus, SPI, UART/USART
Supply Current-Max 2.9mA
Bit Size 8
Data Converter A/D 17x10b; D/A 1x5b
Has ADC YES
DMA Channels NO
PWM Channels YES
DAC Channels YES
ROM (words) 16384
EEPROM Size 256 x 8
On Chip Program ROM Width 14
Boundary Scan NO
Low Power Mode YES
Format FIXED POINT
Integrated Cache NO
RAM (words) 2048
RAM (bytes) 2048
Number of Serial I/Os 1
Number of Timers 7
Number of External Interrupts 1
On Chip Data RAM Width 8
Dimensions
Height Seated (Max) 2mm
Length 7.2mm
Width 5.3mm
Compliance
RoHS Status RoHS Compliant
