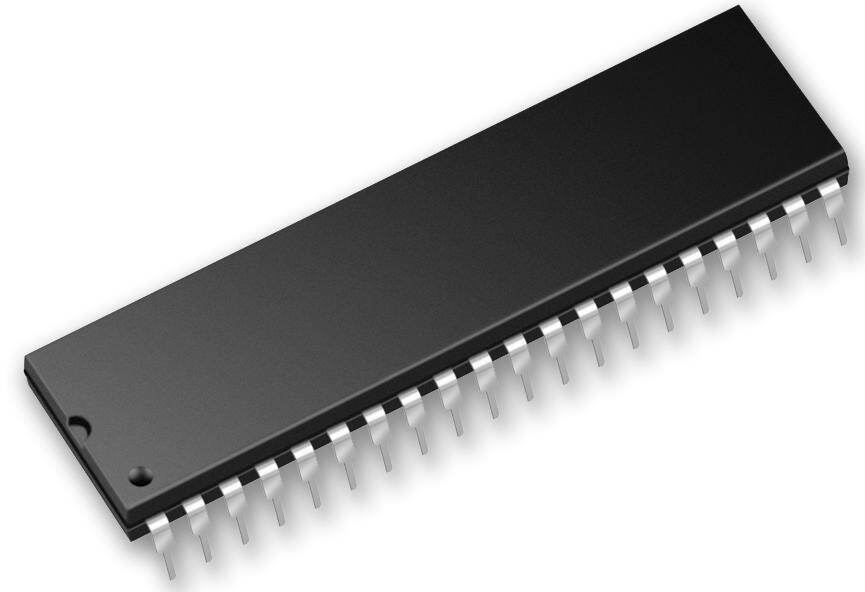

PIC16F77-I/PG
RoHS
/
Package PDIP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
8-bit Microcontrollers - MCU 14KB 368 RAM 33 I/O
PDF
/
Inventory: 3233
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Length 52.26mm
Technical
RAM (bytes) 368
Number of Programmable I/O 33
On Chip Program ROM Width 14
Core Architecture PIC
ROM (words) 8192
Number of Timers/Counters 3
DAC Channels NO
PWM Channels YES
Data Bus Width 8b
DMA Channels NO
Has ADC YES
Frequency (Max) 20MHz
Bit Size 8
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Memory Type FLASH
RAM Size 368B
Number of I/O 33
Memory Size 8kB
Min Supply Voltage 4V
Max Supply Voltage 5.5V
Interface I2C, SPI, USART
Temperature Grade OTHER
Qualification Status Not Qualified
Pin Count 40
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 20MHz
Terminal Pitch 2.54mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology CMOS
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn)
Number of Terminations 40
Pbfree Code yes
JESD-609 Code e3
Packaging Bulk
Physical
Number of Pins 40
Package / Case PDIP
Mount Through Hole
