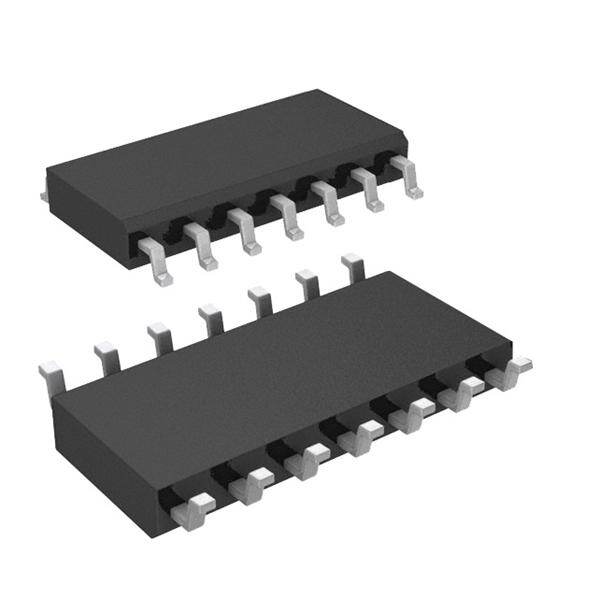

PIC16F676-I/SLG
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
8-bit Microcontrollers - MCU 1.75KB 64 RAM 12 I/O Lead Free Package
PDF
/
Buying Options
Total Price: USD $1.54
Unit Price: USD $1.544958
≥1 USD $1.544958
≥10 USD $1.457511
≥100 USD $1.375014
≥500 USD $1.297179
≥1000 USD $1.223749
Inventory: 1126
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case SOIC
Number of Pins 14
Technical
JESD-609 Code e3
Moisture Sensitivity Level (MSL) 1
Number of Terminations 14
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 5V
Frequency 20MHz
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 14
Temperature Grade INDUSTRIAL
Interface RS-232, USB
Max Supply Voltage 5.5V
Min Supply Voltage 2V
Memory Size 1.8kB
Number of I/O 12
RAM Size 64B
Memory Type FLASH
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Bit Size 8
Frequency (Max) 20MHz
Has ADC YES
DMA Channels NO
Data Bus Width 8b
PWM Channels NO
DAC Channels NO
Number of Timers/Counters 2
Core Architecture PIC
On Chip Program ROM Width 14
Number of Programmable I/O 12
RAM (bytes) 64
Dimensions
Height Seated (Max) 1.75mm
Length 8.65mm
Compliance
RoHS Status RoHS Compliant
