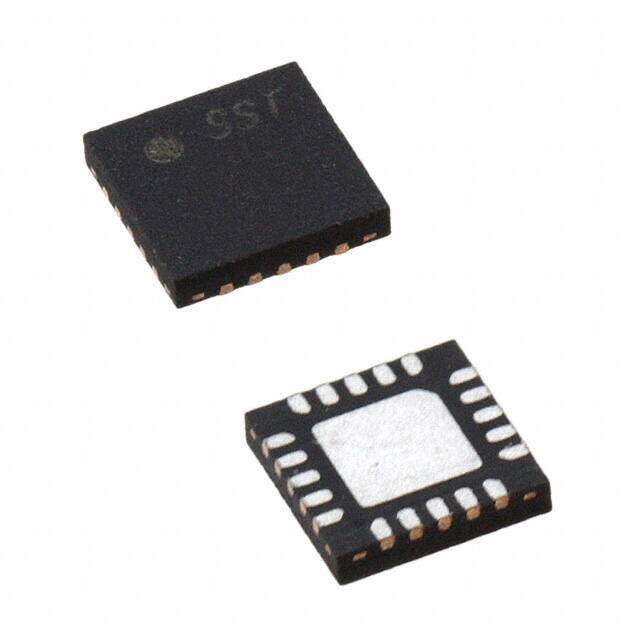

PIC16F527-I/JP
RoHS
RoHS compliant
RoHS compliantPackage 20-UFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 8BIT 1.5KB FLASH 20UQFN
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.136782
≥1 USD $1.136782
≥10 USD $1.111928
≥100 USD $1.093613
Inventory: 6
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Surface Mount
Package / Case 20-UFQFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tube
Published 2012
Series PIC? 16F
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 20
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
HTS Code 8542.31.00.01
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Pitch 0.4mm
Frequency 20MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PIC16F527
JESD-30 Code S-PQCC-N20
Supply Voltage-Max (Vsup) 5.5V
Supply Voltage-Min (Vsup) 2V
Memory Size 1.5kB
Oscillator Type Internal
Number of I/O 17
RAM Size 68 x 8
Voltage - Supply (Vcc/Vdd) 2V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor PIC
Peripherals Brown-out Detect/Reset, POR, WDT
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 1.5KB 1K x 12
Bit Size 8
Data Converter A/D 8x8b
Has ADC YES
DMA Channels NO
PWM Channels NO
DAC Channels NO
ROM (words) 1024
EEPROM Size 64 x 8
On Chip Program ROM Width 12
Low Power Mode YES
Integrated Cache NO
RAM (words) 68
Number of Timers 1
On Chip Data RAM Width 8
Dimensions
Height Seated (Max) 0.55mm
Length 3mm
Width 3mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
