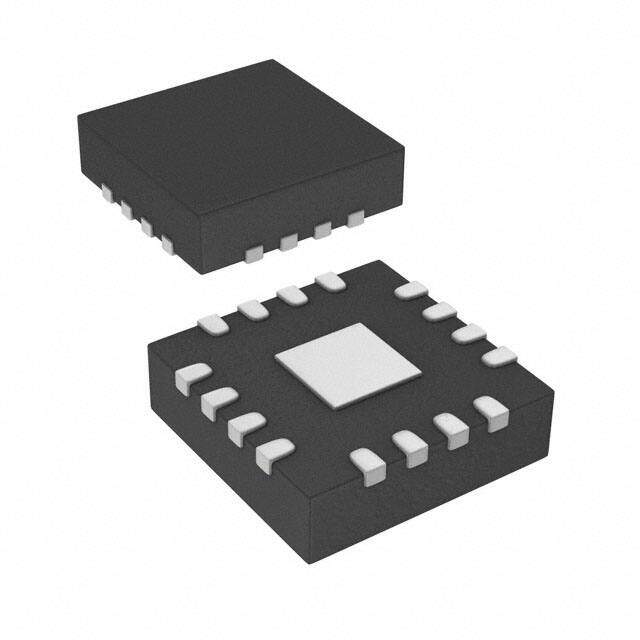

PIC16F506-I/MG
RoHS
RoHS compliant
RoHS compliantPackage 16-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 8BIT 1.5KB FLASH 16QFN
PDF
/
Inventory: 9458
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Number of Programmable I/O 12
On Chip Program ROM Width 12
Number of Timers/Counters 1
DAC Channels NO
PWM Channels NO
Data Bus Width 8b
DMA Channels NO
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 4x8b
Bit Size 8
Program Memory Size 1.5KB 1K x 12
Core Size 8-Bit
Program Memory Type FLASH
Peripherals POR, WDT
Core Processor PIC
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 2V~5.5V
RAM Size 67 x 8
Number of I/O 11
Oscillator Type Internal
Memory Size 1.5kB
Supply Voltage-Min (Vsup) 2V
Supply Voltage-Max (Vsup) 5.5V
Pin Count 16
Base Part Number PIC16F506
Frequency 20MHz
Supply Voltage 5V
Terminal Position QUAD
Technology CMOS
Max Power Dissipation 700mW
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PIC? 16F
Packaging Tube
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 16
Package / Case 16-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 7 Weeks
Alternative Model
