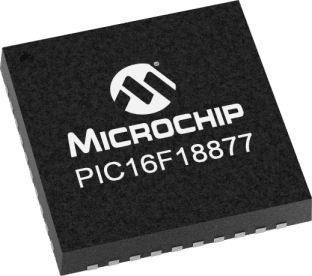

PIC16F18877-E/MVVAO
RoHS
RoHS compliant
RoHS compliantPackage 40-UFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
56KB FLASH 4KB RAM 256B EE ADCC
PDF
/
Buying Options
Total Price: USD $1.99
Unit Price: USD $1.991855
≥1 USD $1.991855
≥10 USD $1.879107
≥100 USD $1.772752
≥500 USD $1.672394
≥1000 USD $1.577741
Inventory: 1117
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 40-UFQFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TA
Series Automotive, AEC-Q100, PIC? XLP? 16F
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 40
Terminal Finish Matte Tin (Sn) - annealed
Additional Feature ALSO OPERATES AT 2.3 V MINIMUM SUPPLY AT 16 MHZ
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Supply Voltage 3V
Terminal Pitch 0.4mm
Reach Compliance Code compliant
Time@Peak Reflow Temperature-Max (s) 30
JESD-30 Code S-PQCC-N40
Supply Voltage-Max (Vsup) 5.5V
Supply Voltage-Min (Vsup) 2.5V
Oscillator Type Internal
Number of I/O 36
Speed 32MHz
RAM Size 4K x 8
Voltage - Supply (Vcc/Vdd) 2.3V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor PIC
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Clock Frequency 32MHz
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 56KB 32K x 14
Connectivity I2C, LINbus, SPI, UART/USART
Bit Size 8
Data Converter A/D 35x10b; D/A 1x5b
Has ADC YES
DMA Channels NO
PWM Channels YES
DAC Channels YES
ROM (words) 32768
EEPROM Size 256 x 8
On Chip Program ROM Width 14
CPU Family PIC
Low Power Mode YES
Screening Level TS 16949
Integrated Cache NO
RAM (words) 4096
RAM (bytes) 4096
On Chip Data RAM Width 8
Dimensions
Height Seated (Max) 0.55mm
Length 5mm
Width 5mm
Compliance
RoHS Status RoHS Compliant
