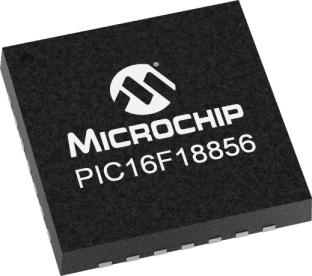

PIC16F18856T-I/MLVAO
RoHS
RoHS compliant
RoHS compliantPackage 28-VQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
28KB FLASH 2KB RAM 256B EE ADCC
PDF
/
Inventory: 2106
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 6mm
Length 6mm
Height Seated (Max) 1mm
Technical
On Chip Data RAM Width 8
Number of Timers 7
RAM (bytes) 2048
RAM (words) 2048
Integrated Cache NO
Screening Level TS 16949
Low Power Mode YES
CPU Family PIC
On Chip Program ROM Width 14
EEPROM Size 256 x 8
ROM (words) 16384
DAC Channels YES
PWM Channels YES
DMA Channels NO
Has ADC YES
Data Converter A/D 24x10b; D/A 1x5b
Bit Size 8
Connectivity I2C, LINbus, SPI, UART/USART
Program Memory Size 28KB 16K x 14
Core Size 8-Bit
Program Memory Type FLASH
Clock Frequency 20MHz
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor PIC
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 2.3V~5.5V
RAM Size 2K x 8
Speed 32MHz
Number of I/O 25
Oscillator Type Internal
Supply Voltage-Min (Vsup) 2.5V
Supply Voltage-Max (Vsup) 5.5V
JESD-30 Code S-PQCC-N28
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code compliant
Terminal Pitch 0.65mm
Supply Voltage 3V
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Additional Feature ALSO OPERATES AT 2.3 V MINIMUM SUPPLY AT 16 MHZ
Terminal Finish Matte Tin (Sn)
Number of Terminations 28
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series Automotive, AEC-Q100, PIC? XLP? 16F
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 28-VQFN Exposed Pad
Mounting Type Surface Mount
