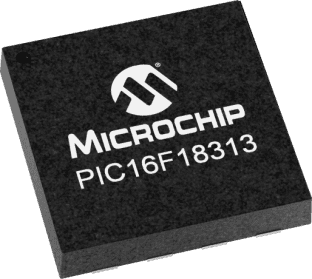

PIC16F18313-E/RFVAO
RoHS
RoHS compliant
RoHS compliantPackage 8-UDFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
3.5KB FLASH 256 EEPROM 256B RAM
PDF
/
Inventory: 8357
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 8-UDFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TA
Series Automotive, AEC-Q100, PIC? XLP? 16F
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Terminal Finish Matte Tin (Sn)
Technology CMOS
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Supply Voltage 3V
Reach Compliance Code compliant
Time@Peak Reflow Temperature-Max (s) 30
JESD-30 Code S-PDSO-N8
Supply Voltage-Max (Vsup) 5.5V
Supply Voltage-Min (Vsup) 2.5V
Oscillator Type Internal
Number of I/O 6
Speed 32MHz
RAM Size 256 x 8
Voltage - Supply (Vcc/Vdd) 2.3V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor PIC
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Clock Frequency 32MHz
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 3.5KB 2K x 14
Connectivity I2C, LINbus, SPI, UART/USART
Bit Size 8
Data Converter A/D 5x10b; D/A 1x5b
Has ADC YES
DMA Channels NO
PWM Channels YES
DAC Channels YES
ROM (words) 2048
EEPROM Size 256 x 8
On Chip Program ROM Width 14
Boundary Scan NO
Low Power Mode YES
Format FIXED-POINT
Integrated Cache NO
RAM (words) 256
RAM (bytes) 256
Number of Serial I/Os 1
Number of Timers 3
Number of External Interrupts 1
On Chip Data RAM Width 8
Dimensions
Height Seated (Max) 0.55mm
Length 3mm
Width 3mm
Compliance
RoHS Status RoHS Compliant
