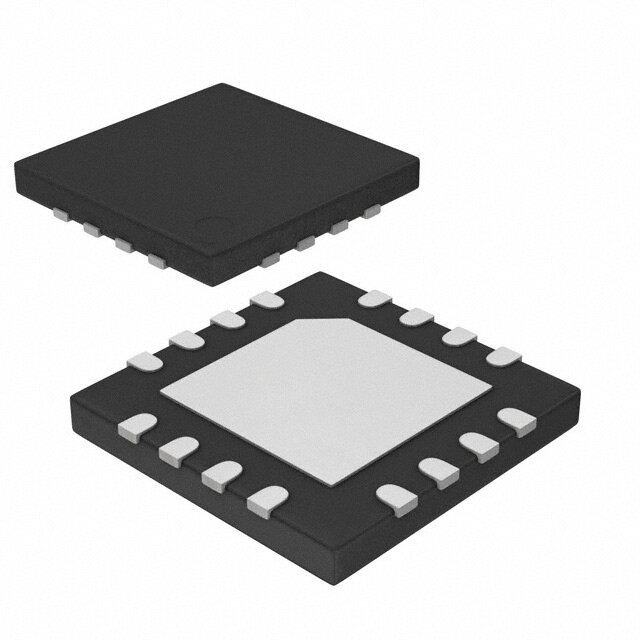

PIC16F1823T-I/JQ
RoHS
RoHS compliant
RoHS compliantPackage 16-UQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 8BIT 3.5KB FLASH 16UQFN
PDF
/
Inventory: 5547
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Surface Mount
Package / Case 16-UQFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2010
Series PIC? XLP? 16F
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 16
Terminal Finish Matte Tin (Sn) - annealed
HTS Code 8542.31.00.01
Subcategory Microcontrollers
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 5V
Terminal Pitch 0.65mm
Frequency 32MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PIC16F1823
JESD-30 Code S-PQCC-N16
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 5.5V
Power Supplies 2/5V
Supply Voltage-Min (Vsup) 1.8V
Interface I2C, LIN, SPI, UART, USART
Memory Size 3.5kB
Oscillator Type Internal
Number of I/O 12
RAM Size 128 x 8
Voltage - Supply (Vcc/Vdd) 1.8V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor PIC
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 3.5KB 2K x 14
Connectivity I2C, LINbus, SPI, UART/USART
Supply Current-Max 3.6mA
Bit Size 8
Data Converter A/D 8x10b
Has ADC YES
DMA Channels NO
PWM Channels YES
DAC Channels NO
ROM (words) 2048
EEPROM Size 256 x 8
On Chip Program ROM Width 8
RAM (words) 128
Number of Timers 3
On Chip Data RAM Width 8
Dimensions
Height Seated (Max) 0.55mm
Length 4mm
Width 4mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
