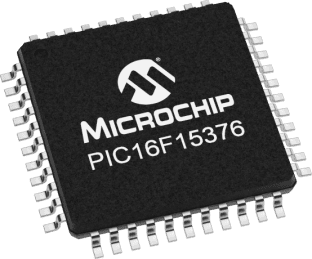

PIC16F15376T-I/PTVAO
RoHS
RoHS compliant
RoHS compliantPackage 44-TQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
28KB 2KB RAM 38X I/O 4XPWMS COMP
PDF
/
Inventory: 3013
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 10mm
Length 10mm
Height Seated (Max) 1.2mm
Technical
On Chip Data RAM Width 8
Number of Timers 2
RAM (bytes) 2048
RAM (words) 2048
Integrated Cache NO
Screening Level TS 16949
CPU Family PIC
On Chip Program ROM Width 14
ROM (words) 16384
DAC Channels YES
PWM Channels YES
DMA Channels NO
Has ADC YES
Data Converter A/D 35x10b; D/A 1x5b
Bit Size 8
Connectivity I2C, LINbus, SPI, UART/USART
Program Memory Size 28KB 16K x 14
Core Size 8-Bit
Program Memory Type FLASH
Clock Frequency 32MHz
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor PIC
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 2.3V~5.5V
RAM Size 2K x 8
Speed 32MHz
Number of I/O 36
Oscillator Type Internal
Supply Voltage-Min (Vsup) 2.5V
Supply Voltage-Max (Vsup) 5.5V
JESD-30 Code S-PQFP-G44
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code compliant
Terminal Pitch 0.8mm
Supply Voltage 3V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Additional Feature ALSO OPERATES AT 2.3 V MINIMUM SUPPLY AT 16 MHZ
Terminal Finish Matte Tin (Sn)
Number of Terminations 44
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series Automotive, AEC-Q100, PIC? XLP? 16F
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 44-TQFP
Mounting Type Surface Mount
