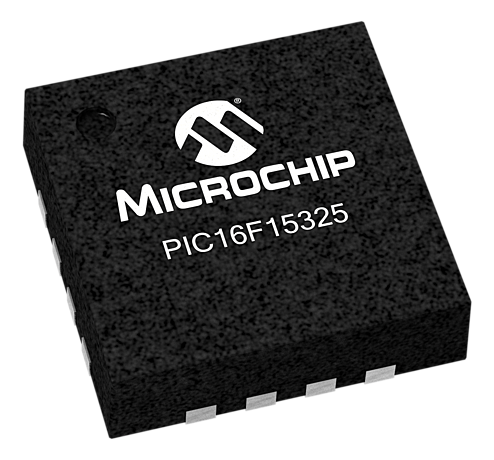

PIC16F15325T-E/JQVAO
RoHS
/
Package 16-UQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
14KB 1KB RAM 12X I/O 4XPWMS COMP
PDF
/
Inventory: 1878
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 16-UQFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TA
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100, PIC? 16F
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
Additional Feature IT ALSO OPERATES AT 2.3V MIN AT 16 MHZ
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Supply Voltage 3V
Terminal Pitch 0.65mm
Reach Compliance Code compliant
JESD-30 Code S-PQCC-N16
Supply Voltage-Max (Vsup) 5.5V
Supply Voltage-Min (Vsup) 2.5V
Oscillator Type Internal
Number of I/O 12
Speed 32MHz
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 2.3V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor PIC
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Clock Frequency 32MHz
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 14KB 8K x 14
Connectivity I2C, LINbus, SPI, UART/USART
Bit Size 8
Data Converter A/D 11x10b
Has ADC YES
DMA Channels NO
PWM Channels YES
DAC Channels YES
On Chip Program ROM Width 14
Screening Level AEC-Q100; TS 16949
Dimensions
Height Seated (Max) 0.55mm
Length 4mm
Width 4mm
