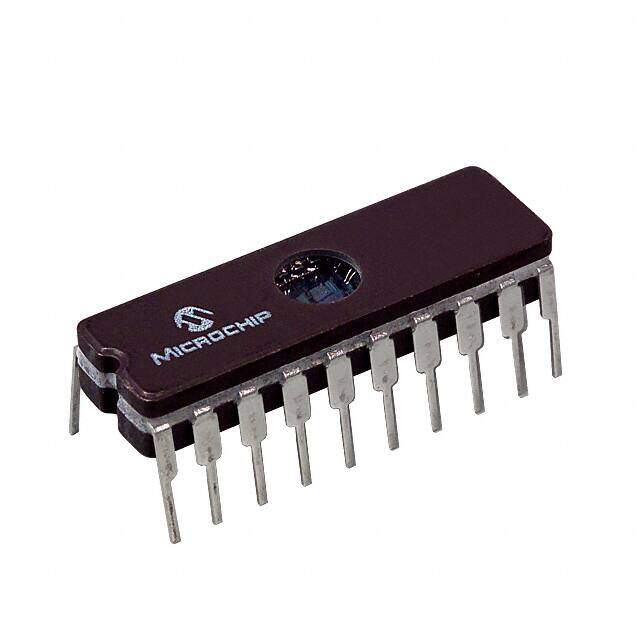

PIC16C781/JW
RoHS
/
Package 20-CDIP (0.300, 7.62mm) Window
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
8-bit Microcontrollers - MCU 1.75KB 128RAM 16 I/O
PDF
/
Inventory: 1744
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Technical
Number of Programmable I/O 16
Max Frequency 20MHz
Core Architecture PIC
Number of Timers/Counters 2
Data Bus Width 8b
Access Time 20 μs
Data Converter A/D 8x8b; D/A 1x8b
Program Memory Size 1.75KB 1K x 14
Core Size 8-Bit
Program Memory Type EPROM, UV
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor PIC
Voltage - Supply (Vcc/Vdd) 4V~5.5V
Memory Type EPROM
RAM Size 128 x 8
Speed 20MHz
Number of I/O 13
Oscillator Type Internal
Memory Size 1.8kB
Min Supply Voltage 4V
Max Supply Voltage 5.5V
Operating Supply Voltage 5V
Base Part Number PIC16C781
Frequency 20MHz
Max Power Dissipation 1W
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series PIC? 16C
Packaging Tube
Operating Temperature 0°C~70°C TA
Physical
Supplier Device Package 20-CDIP
Number of Pins 20
Package / Case 20-CDIP (0.300, 7.62mm) Window
Mounting Type Through Hole
Mount Through Hole
