PIC14000/JW
RoHS
/

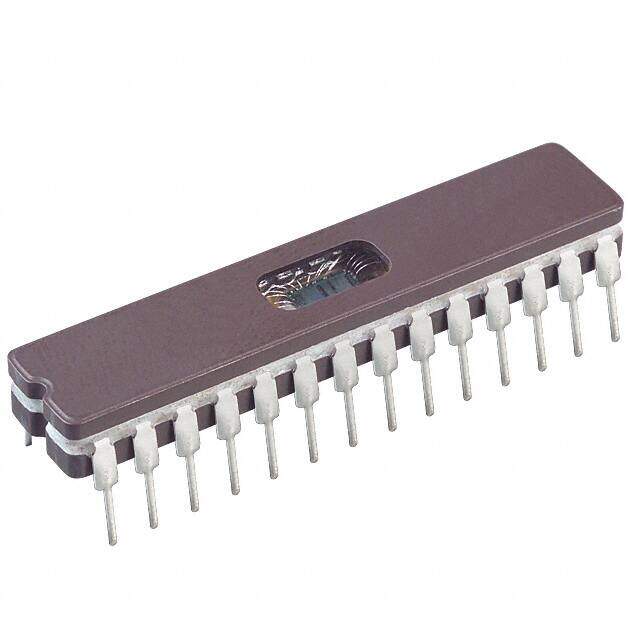

Package 28-CDIP (0.300, 7.62mm) Window
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 8BIT 7KB EPROM/UV 28CDIP
PDF
/
Inventory: 6873
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case 28-CDIP (0.300, 7.62mm) Window
Surface Mount NO
Number of Pins 28
Technical
Operating Temperature 0°C~70°C TA
Packaging Tube
Published 1996
Series PIC? 14
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 28
Terminal Finish MATTE TIN
Subcategory Microcontrollers
Max Power Dissipation 1W
Technology CMOS
Terminal Position DUAL
Supply Voltage 5V
Terminal Pitch 2.54mm
Frequency 4MHz
Base Part Number PIC14000
Pin Count 28
Supply Voltage-Max (Vsup) 5.5V
Power Supplies 5V
Supply Voltage-Min (Vsup) 4.5V
Interface I2C, SPI, UART
Memory Size 7kB
Oscillator Type Internal
Number of I/O 20
RAM Size 192 x 8
Memory Type EPROM
Voltage - Supply (Vcc/Vdd) 2.7V~6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor PIC
Peripherals POR, Temp Sensor, WDT
Program Memory Type EPROM, UV
Core Size 8-Bit
Program Memory Size 7KB 4K x 14
Connectivity I2C
Bit Size 8
Data Converter Slope A/D
Access Time 4 μs
Has ADC YES
DMA Channels NO
Data Bus Width 8b
PWM Channels NO
DAC Channels NO
Number of Timers/Counters 1
ROM (words) 4096
On Chip Program ROM Width 14
CPU Family PIC
Number of Programmable I/O 22
ROM Programmability UVPROM
Dimensions
Height Seated (Max) 4.95mm
Length 37.02mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
