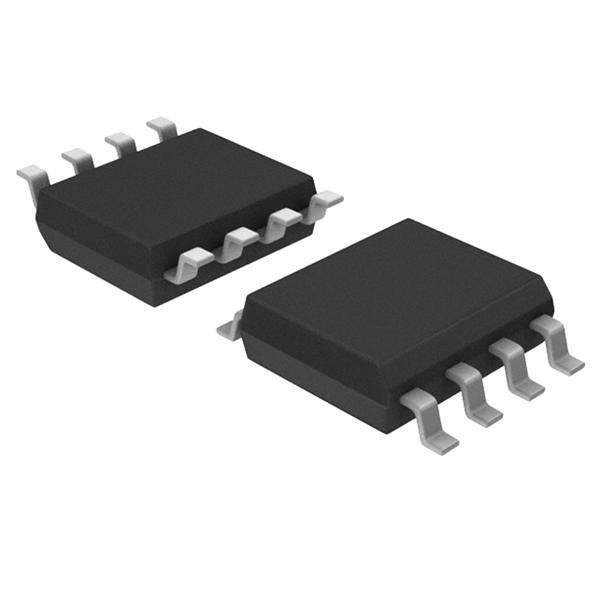

PIC12F675-E/SNG image
Favorite
PIC12F675-E/SNG image
Favorite

PIC12F675-E/SNG

Microchip Technology
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description 8-bit Microcontrollers - MCU 1.75KB 64 RAM 6 I/O Lead Free Package
PDF
/
Inventory: 5166
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Package / Case SOIC
Surface Mount YES

Technical

Packaging Bulk
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Additional Feature CAN ALSO OPERATE AT 2V MIN SUPPLY
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 5V
Frequency 20MHz
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 8
JESD-30 Code R-PDSO-G8
Qualification Status Not Qualified
Temperature Grade AUTOMOTIVE
Interface RS-232, USB
Max Supply Voltage 5.5V
Min Supply Voltage 2V
Memory Size 1kB
Number of I/O 6
RAM Size 64B
Memory Type FLASH
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Bit Size 8
Frequency (Max) 20MHz
Access Time 20 μs
Has ADC YES
DMA Channels NO
Data Bus Width 8b
PWM Channels NO
DAC Channels NO
Number of Timers/Counters 1
Core Architecture PIC
On Chip Program ROM Width 14
Number of Programmable I/O 6
RAM (bytes) 64

Dimensions

Length 4.9mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
