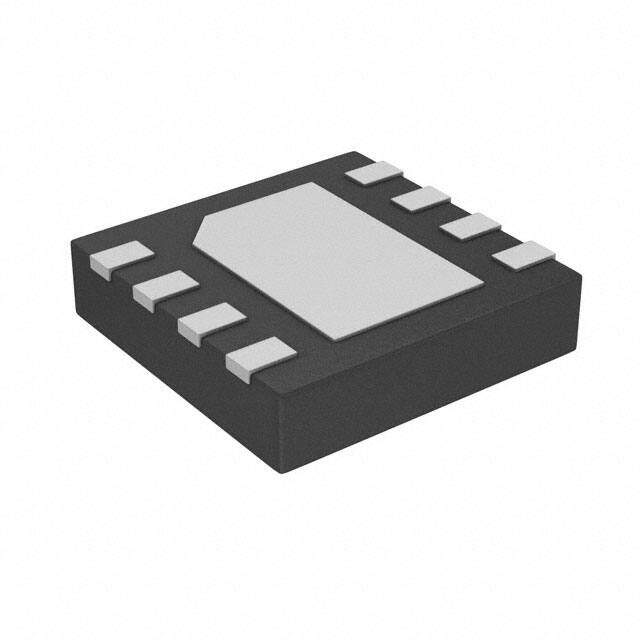

PIC12F1572-I/RF
RoHS
RoHS compliant
RoHS compliantPackage 8-UDFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 8BIT 3.5KB FLASH 8UDFN
PDF
/
Buying Options
Total Price: USD $0.74
Unit Price: USD $0.7392
≥1 USD $0.7392
≥10 USD $0.6776
≥100 USD $0.616
Inventory: 588
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3mm
Length 3mm
Height Seated (Max) 0.55mm
Technical
On Chip Program ROM Width 14
ROM (words) 2048
DAC Channels YES
PWM Channels YES
DMA Channels NO
Has ADC YES
Data Converter A/D 4x10b; D/A 1x5b
Bit Size 8
Connectivity LINbus, UART/USART
Program Memory Size 3.5KB 2K x 14
Core Size 8-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor PIC
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 2.3V~5.5V
RAM Size 256 x 8
Number of I/O 6
Oscillator Type Internal
Memory Size 3.5kB
Interface LIN, UART, USART
Supply Voltage-Min (Vsup) 2.5V
Supply Voltage-Max (Vsup) 5.5V
JESD-30 Code S-PDSO-N8
Base Part Number PIC12F1572
Frequency 32MHz
Supply Voltage 3V
Terminal Form NO LEAD
Terminal Position DUAL
Technology CMOS
HTS Code 8542.31.00.01
Terminal Finish Matte Tin (Sn) - annealed
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series PIC? 12F
Published 2016
Packaging Tube
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 8-UDFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
