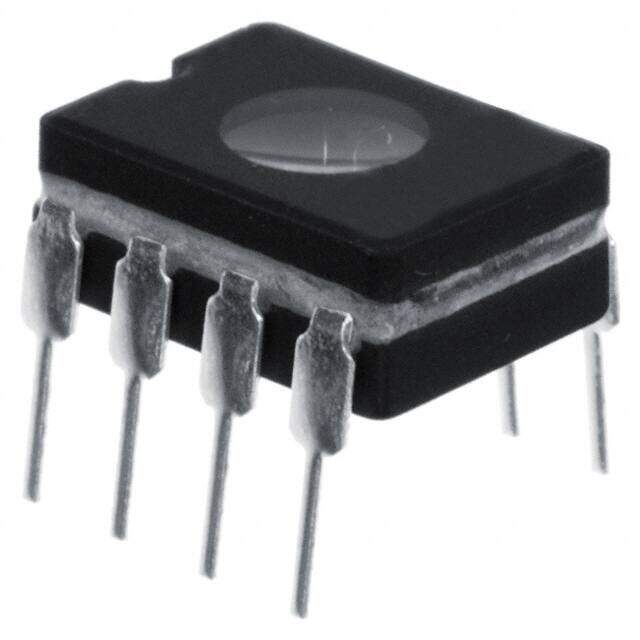

PIC12C508/JW image
Favorite
PIC12C508/JW image
Favorite

PIC12C508/JW

Microchip Technology
RoHS
RoHS RoHS compliant
Package 8-CDIP (0.300, 7.62mm) Window
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description IC MCU 8BIT 768B EPROM/UV 8CDIP
PDF
/
Inventory: 9564
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Length 13.21mm
Height Seated (Max) 4.7mm

Technical

ROM Programmability UVPROM
On Chip Program ROM Width 12
ROM (words) 512
DAC Channels NO
PWM Channels NO
Data Bus Width 8b
DMA Channels NO
Has ADC NO
Access Time 4 μs
Watchdog Timer Yes
Bit Size 8
Program Memory Size 768B 512 x 12
Core Size 8-Bit
Program Memory Type EPROM, UV
Peripherals POR, WDT
Core Processor PIC
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 2.5V~5.5V
Memory Type EPROM
RAM Size 25 x 8
Number of I/O 5
Oscillator Type Internal
Memory Size 512B
Pin Count 8
Base Part Number PIC12C508
Frequency 4MHz
Terminal Position DUAL
Technology CMOS
Max Power Dissipation 700mW
Terminal Finish MATTE TIN
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Series PIC? 12C
Published 1997
Packaging Tube
Operating Temperature 0°C~70°C TA

Physical

Number of Pins 8
Surface Mount NO
Package / Case 8-CDIP (0.300, 7.62mm) Window
Mounting Type Through Hole
