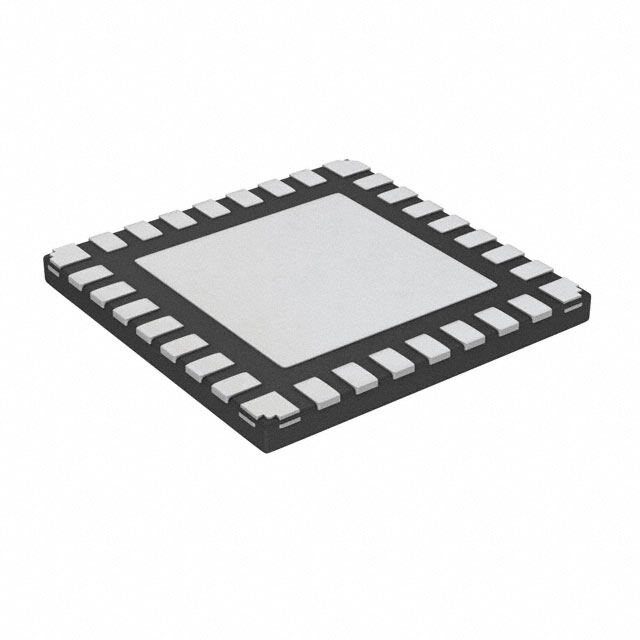

DSPIC33EP16GS202-I/MX
RoHS
RoHS compliant
RoHS compliantPackage 28-UQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 16BIT 16KB FLASH 28UQFN
PDF
/
Buying Options
Total Price: USD $7.02
Unit Price: USD $7.018763
≥1 USD $7.018763
≥200 USD $2.71639
≥500 USD $2.621861
≥1000 USD $2.574597
Inventory: 1255
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 6mm
Length 6mm
Height Seated (Max) 0.6mm
Technical
Screening Level TS 16949
On Chip Program ROM Width 8
ROM (words) 16384
Density 128 kb
DAC Channels NO
PWM Channels YES
DMA Channels NO
Has ADC YES
Data Converter A/D 12x12b, 2x12b
Bit Size 16
Connectivity I2C, IrDA, LINbus, SPI, UART/USART
Program Memory Size 16KB 16K x 8
Core Size 16-Bit
Program Memory Type FLASH
Clock Frequency 60MHz
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor dsPIC
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 3V~3.6V
RAM Size 2K x 8
Speed 70 MIPs
Number of I/O 21
Oscillator Type Internal
Memory Size 16kB
Interface I2C, IrDA, LIN, SPI, UART, USART
Supply Voltage-Min (Vsup) 3V
Supply Voltage-Max (Vsup) 3.6V
Base Part Number DSPIC33EP16GS202
Terminal Pitch 0.65mm
Supply Voltage 3.3V
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
HTS Code 8542.31.00.01
Additional Feature OPERATES UPTO 70MIPS
Terminal Finish Matte Tin (Sn) - annealed
Number of Terminations 28
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series dsPIC? 33EP
Published 2015
Packaging Tube
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 28
Surface Mount YES
Package / Case 28-UQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
