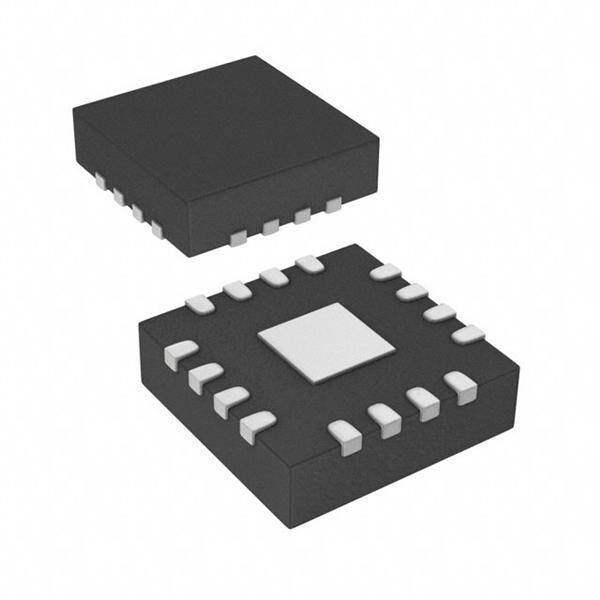

DSPIC30F2010-20E/MMG
RoHS
/
Package QFN
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
Digital Signal Processors & Controllers - DSP, DSC 16 Bit MCU/DSP 28LD 20M 12KB FL
PDF
/
Inventory: 7808
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Length 6mm
Height Seated (Max) 1mm
Technical
On Chip Data RAM Width 8
Internal Bus Architecture MULTIPLE
Barrel Shifter YES
Number of External Interrupts 3
RAM (words) 512
Integrated Cache NO
Format FLOATING-POINT
Number of Programmable I/O 20
Screening Level TS 16949
Low Power Mode YES
Boundary Scan NO
On Chip Program ROM Width 24
Core Architecture dsPIC
Number of Timers/Counters 3
PWM Channels YES
Data Bus Width 16b
DMA Channels NO
Has ADC YES
Watchdog Timer Yes
Frequency (Max) 40MHz
Bit Size 16
Peripherals I2C, PWM
uPs/uCs/Peripheral ICs Type DIGITAL SIGNAL PROCESSOR, OTHER
Memory Type FLASH
RAM Size 512B
Number of I/O 20
Memory Size 12kB
Interface I2C, SPI, UART
Temperature Grade AUTOMOTIVE
Operating Supply Voltage 5.5V
Qualification Status Not Qualified
JESD-30 Code S-PQCC-N28
Pin Count 28
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 40MHz
Terminal Pitch 0.65mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Subcategory Digital Signal Processors
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Matte Tin (Sn)
Number of Terminations 28
Pbfree Code yes
JESD-609 Code e3
Packaging Bulk
Physical
Surface Mount YES
Package / Case QFN
