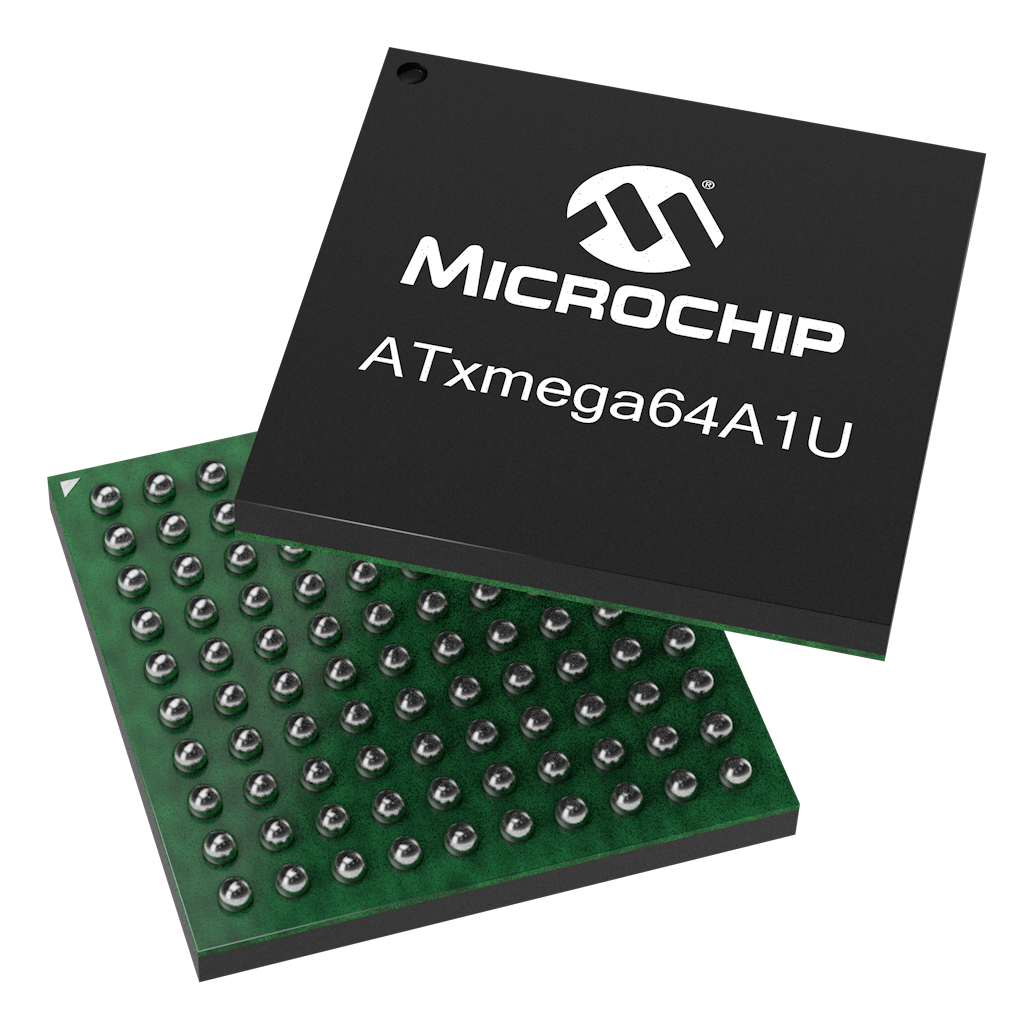

ATXMEGA64A1U-CUR
RoHS
RoHS compliant
RoHS compliantPackage 100-TFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
AVR XMEGA, 64KB FLASH, 2KB EE, 4KB - 100BGA, IND TEMP, GREEN, 1.6-3.6V T&R
PDF
/
Buying Options
Total Price: USD $53.7
Unit Price: USD $53.6959
≥1 USD $53.6959
≥10 USD $44.05815
≥100 USD $42.6816
≥500 USD $41.30505
≥1000 USD $39.92755
Inventory: 1270
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Surface Mount
Package / Case 100-TFBGA
Surface Mount YES
Number of Pins 100
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2014
Series AVR? XMEGA? A1U
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 100
Subcategory Microcontrollers
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 3V
Terminal Pitch 0.8mm
Frequency 32MHz
Base Part Number ATXMEGA64
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 3.6V
Power Supplies 1.8/3.3V
Supply Voltage-Min (Vsup) 1.6V
Interface EBI/EMI, I2C, IrDA, SPI, UART, USART
Memory Size 64kB
Oscillator Type Internal
Number of I/O 78
RAM Size 4K x 8
Voltage - Supply (Vcc/Vdd) 1.6V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor AVR
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type FLASH
Core Size 8/16-Bit
Program Memory Size 64KB 32K x 16
Connectivity EBI/EMI, I2C, IrDA, SPI, UART/USART
Supply Current-Max 12mA
Bit Size 16
Data Converter A/D 16x12b; D/A 4x12b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels YES
Address Bus Width 24
ROM (words) 32768
EEPROM Size 2K x 8
On Chip Program ROM Width 16
Boundary Scan YES
Low Power Mode NO
External Data Bus Width 24
Format FIXED-POINT
Integrated Cache NO
RAM (words) 2048
Number of Serial I/Os 8
Number of Timers 8
On Chip Data RAM Width 16
Number of DMA Channels 4
Dimensions
Height Seated (Max) 1.2mm
Length 9mm
Width 9mm
Compliance
RoHS Status ROHS3 Compliant
