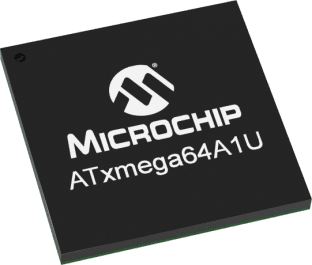

ATXMEGA64A1U-C7UR
RoHS
RoHS compliant
RoHS compliantPackage 100-VFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
AVR XMEGA, 64KB FLASH, 2KB EE, 4KB - 100BGA, IND TEMP, GREEN, 1.6-3.6V T&R
PDF
/
Inventory: 5716
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7mm
Length 7mm
Height Seated (Max) 1mm
Technical
Number of DMA Channels 4
On Chip Data RAM Width 16
Number of Timers 8
Number of Serial I/Os 8
RAM (words) 2048
Integrated Cache NO
Format FIXED-POINT
External Data Bus Width 24
Low Power Mode NO
Boundary Scan YES
On Chip Program ROM Width 16
EEPROM Size 2K x 8
ROM (words) 32768
Address Bus Width 24
DAC Channels YES
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 16x12b; D/A 4x12b
Bit Size 16
Supply Current-Max 12mA
Connectivity EBI/EMI, I2C, IrDA, SPI, UART/USART
Program Memory Size 64KB 32K x 16
Core Size 8/16-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Core Processor AVR
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.6V~3.6V
RAM Size 4K x 8
Number of I/O 78
Oscillator Type Internal
Memory Size 64kB
Interface EBI/EMI, I2C, IrDA, SPI, UART, USART
Supply Voltage-Min (Vsup) 1.6V
Power Supplies 1.8/3.3V
Supply Voltage-Max (Vsup) 3.6V
Qualification Status Not Qualified
Base Part Number ATXMEGA64
Frequency 32MHz
Terminal Pitch 0.65mm
Supply Voltage 3V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Microcontrollers
Number of Terminations 100
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series AVR? XMEGA? A1U
Published 2014
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 100
Surface Mount YES
Package / Case 100-VFBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 7 Weeks
