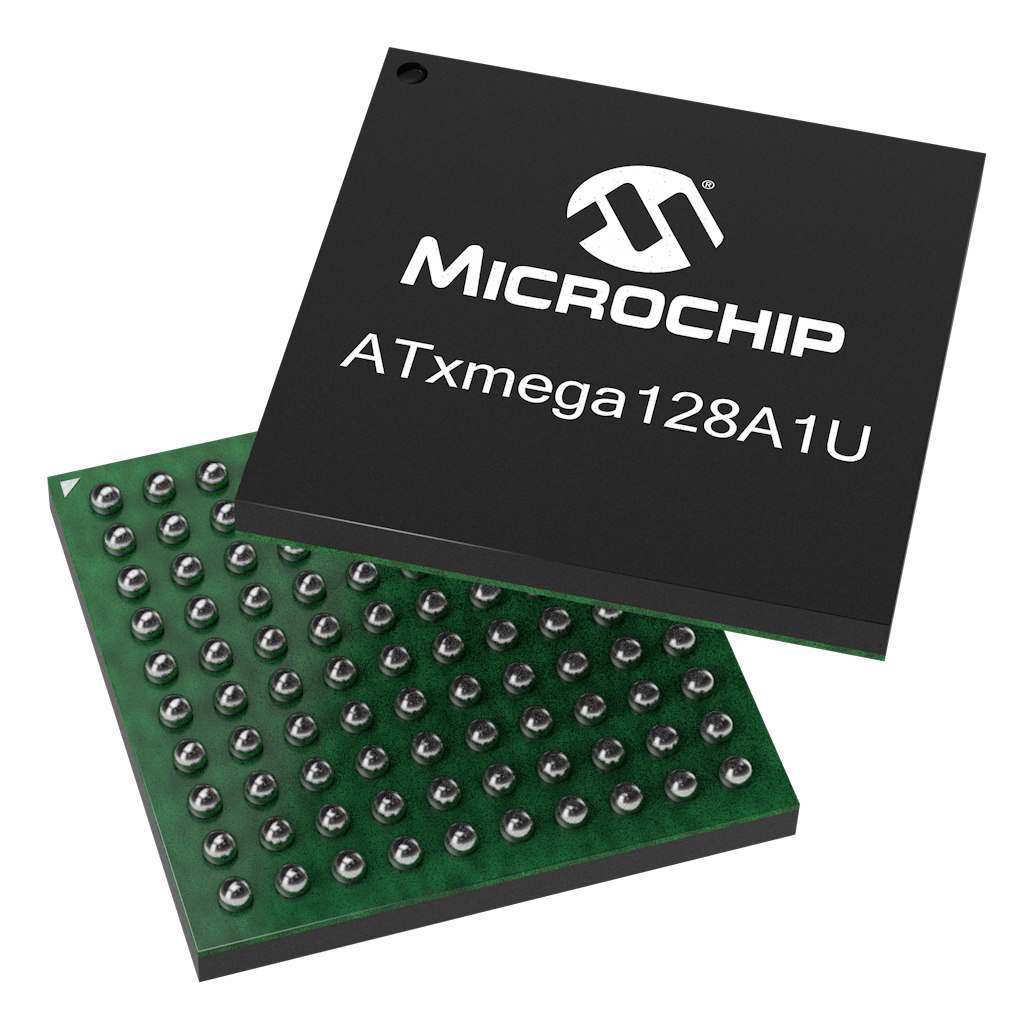

ATXMEGA128A1U-CNR
RoHS
RoHS compliant
RoHS compliantPackage 100-TFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MCU 8-Bit/16-Bit XMEGA AVR RISC 128KB Flash 3.3V 100-Pin C-BGA T/R
PDF
/
Inventory: 2984
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Copper, Silver, Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 100-TFBGA
Number of Pins 100
Technical
Operating Temperature -40°C~105°C TA
Packaging Tape & Reel (TR)
Published 2010
Series AVR? XMEGA? A1U
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 100
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 3V
Frequency 32MHz
Base Part Number ATXMEGA128
Operating Supply Voltage 3.3V
Supply Voltage-Max (Vsup) 3.6V
Interface EBI/EMI, I2C, IrDA, SPI, UART, USART, USB
Memory Size 128kB
Oscillator Type Internal
Number of I/O 78
RAM Size 8K x 8
Voltage - Supply (Vcc/Vdd) 1.6V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor AVR
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type FLASH
Core Size 8/16-Bit
Program Memory Size 128KB 64K x 16
Connectivity EBI/EMI, I2C, IrDA, SPI, UART/USART, USB
Supply Current-Max 12mA
Bit Size 16
Data Converter A/D 16x12b; D/A 4x12b
Number of DMA Channels 4
On Chip Data RAM Width 16
Number of Serial I/Os 8
RAM (words) 4096
Integrated Cache NO
Format FIXED-POINT
External Data Bus Width 24
Low Power Mode NO
Boundary Scan YES
On Chip Program ROM Width 16
EEPROM Size 2K x 8
ROM (words) 65536
Address Bus Width 24
Number of Timers/Counters 8
DAC Channels YES
PWM Channels YES
DMA Channels YES
Has ADC YES
Watchdog Timer Yes
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 9mm
Length 9mm
Height Seated (Max) 1.2mm
