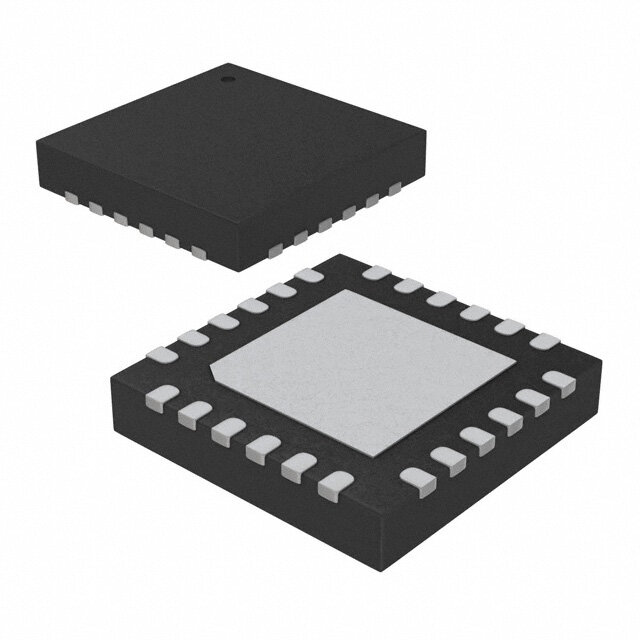

ATTINY807-MN
RoHS
RoHS compliant
RoHS compliantPackage 24-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
20MHZ 8KB QFN24
PDF
/
Buying Options
Total Price: USD $1.79
Unit Price: USD $1.790857
≥1 USD $1.790857
≥10 USD $1.54885
≥100 USD $1.397104
Inventory: 18
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4mm
Length 4mm
Height Seated (Max) 0.9mm
Technical
On Chip Data RAM Width 8
Number of External Interrupts 22
Number of Timers 2
RAM (bytes) 512
RAM (words) 512
Integrated Cache NO
Low Power Mode YES
On Chip Program ROM Width 16
EEPROM Size 128 x 8
ROM (words) 4096
DAC Channels NO
PWM Channels YES
DMA Channels NO
Has ADC YES
Data Converter A/D 12x10b
Bit Size 8
Connectivity I2C, IrDA, LINbus, SPI, UART/USART
Program Memory Size 8KB 8K x 8
Core Size 8-Bit
Program Memory Type FLASH
Clock Frequency 20MHz
Peripherals Brown-out Detect/Reset, POR, WDT
Core Processor AVR
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.8V~5.5V
RAM Size 512 x 8
Speed 20MHz
Number of I/O 22
Oscillator Type Internal
Supply Voltage-Min (Vsup) 4.5V
Supply Voltage-Max (Vsup) 5.5V
JESD-30 Code S-PQCC-N24
Terminal Pitch 0.5mm
Supply Voltage 5V
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Additional Feature ALSO OPERATES AT 1.8V MINIMUME SUPPLY AT 5MHZ AND 2.7V MINIMUM SUPPLY AT 10 MHZ
Number of Terminations 24
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series AVR? ATtiny
Packaging Tray
Operating Temperature -40°C~105°C TA
Physical
Surface Mount YES
Package / Case 24-VFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 26 Weeks
