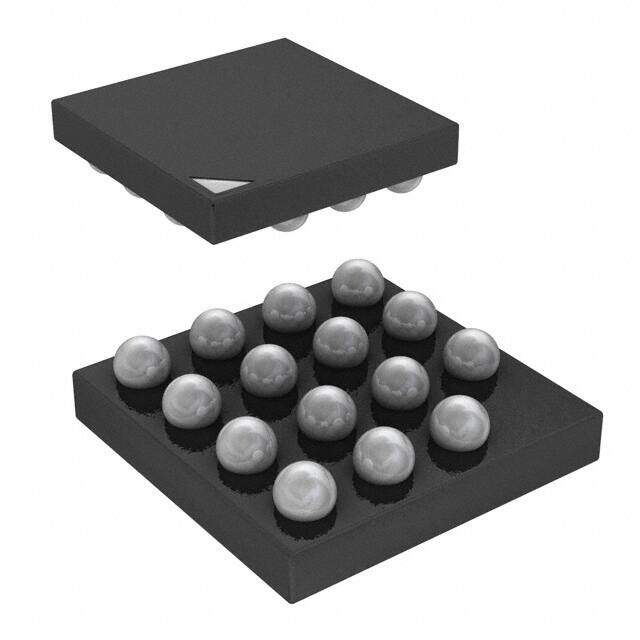

ATTINY24A-CCU
RoHS
RoHS compliant
RoHS compliantPackage 15-UFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
8-bit Microcontrollers - MCU AVR 2KB FL 128B EE USI ADC 20MHz IND
PDF
/
Buying Options
Total Price: USD $1.45
Unit Price: USD $1.452
≥1 USD $1.452
≥10 USD $1.3288
≥100 USD $1.2144
Inventory: 1016
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 15-UFBGA
Number of Pins 15
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Published 1997
Series AVR? ATtiny
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 15
Terminal Finish Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)
Additional Feature ALSO OPERATES 1.8 V MINIMUM SUPPLY AT 4 MHZ
Subcategory Microcontrollers
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 5V
Terminal Pitch 0.65mm
Frequency 20MHz
Base Part Number ATTINY24A
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 5.5V
Supply Voltage-Min (Vsup) 4.5V
Interface SPI
Memory Size 2kB
Oscillator Type Internal
Number of I/O 12
RAM Size 128 x 8
Voltage - Supply (Vcc/Vdd) 1.8V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor AVR
Peripherals Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 2KB 1K x 16
Connectivity USI
Supply Current-Max 7mA
Bit Size 8
Data Converter A/D 8x10b
Watchdog Timer Yes
Has ADC YES
DMA Channels NO
Data Bus Width 8b
PWM Channels YES
DAC Channels NO
Number of Timers/Counters 2
EEPROM Size 128 x 8
Dimensions
Height Seated (Max) 0.6mm
Length 3mm
Compliance
RoHS Status ROHS3 Compliant
