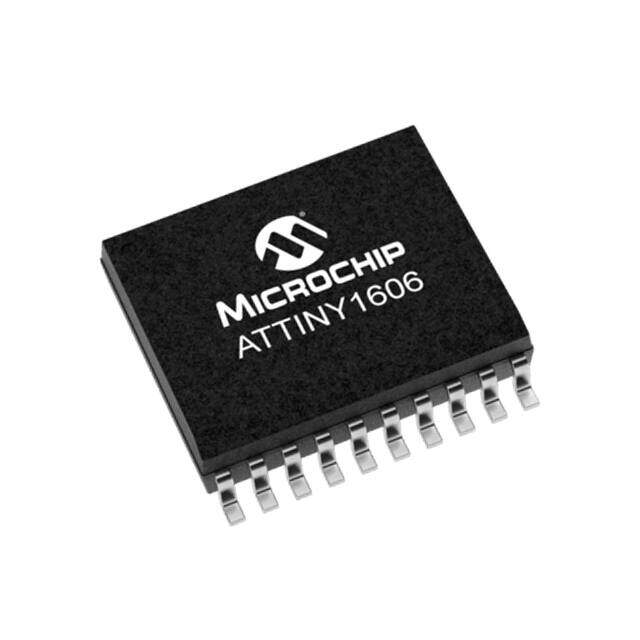

ATTINY1606-SFR
RoHS
RoHS compliant
RoHS compliantPackage 20-SOIC (0.295, 7.50mm Width)
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
20MHZ 16KB SOIC20 IND 125C GREEN
PDF
/
Buying Options
Total Price: USD $0.95
Unit Price: USD $0.950953
≥1 USD $0.950953
≥10 USD $0.89712
≥100 USD $0.846345
≥500 USD $0.798436
≥1000 USD $0.753245
Inventory: 1172
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7.5mm
Length 12.8mm
Height Seated (Max) 2.65mm
Technical
On Chip Data RAM Width 8
Number of Timers 3
RAM (bytes) 1024
RAM (words) 1024
Low Power Mode YES
On Chip Program ROM Width 16
EEPROM Size 256 x 8
ROM (words) 8192
DAC Channels NO
PWM Channels YES
DMA Channels NO
Has ADC YES
Data Converter A/D 12x10b
Bit Size 8
Connectivity I2C, SPI, UART/USART
Program Memory Size 16KB 16K x 8
Core Size 8-Bit
Program Memory Type FLASH
Clock Frequency 20MHz
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor AVR
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.8V~5.5V
RAM Size 1K x 8
Speed 20MHz
Number of I/O 18
Oscillator Type Internal
Supply Voltage-Min (Vsup) 4.5V
Supply Voltage-Max (Vsup) 5.5V
JESD-30 Code R-PDSO-G20
Terminal Pitch 1.27mm
Supply Voltage 5V
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Additional Feature 2.7V MIN @ 10MHZ AND 1.8V MIN @5MHZ FREQUENCY AVAILABLE
Number of Terminations 20
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series AVR? ATtiny
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TA
Physical
Surface Mount YES
Package / Case 20-SOIC (0.295, 7.50mm Width)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 7 Weeks
Alternative Model
