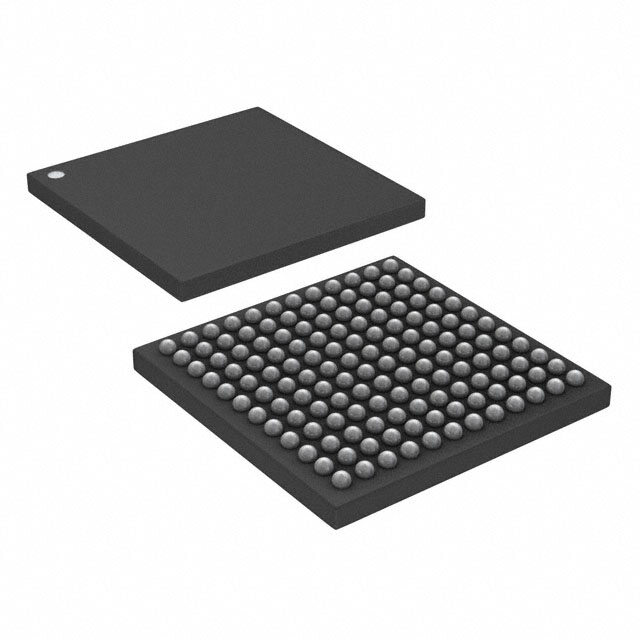

ATSAMV70Q19B-CB
RoHS
RoHS compliant
RoHS compliantPackage 144-TFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 512KB FLASH 144BGA
PDF
/
Inventory: 2289
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 10mm
Length 10mm
Height Seated (Max) 1.2mm
Technical
Number of DMA Channels 24
On Chip Data RAM Width 32
Number of Timers 12
RAM (words) 65536
Low Power Mode YES
CPU Family CORTEX-M7
On Chip Program ROM Width 32
ROM (words) 131072
DAC Channels YES
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 24x12b; D/A 2x12b
Bit Size 32
Connectivity CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, SSC, UART/USART, USB
Program Memory Size 512KB 512K x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 300MHz
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Core Processor ARM? Cortex?-M7
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 3V~3.6V
RAM Size 256K x 8
Speed 300MHz
Number of I/O 114
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.2V
Supply Voltage-Max (Vsup) 1.32V
JESD-30 Code S-PBGA-B144
Base Part Number ATSAMV70Q
Terminal Pitch 0.8mm
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
HTS Code 8542.31.00.01
Number of Terminations 144
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series Automotive, AEC-Q100, SAM V70
Packaging Tray
Operating Temperature -40°C~105°C TA
Physical
Surface Mount YES
Package / Case 144-TFBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
