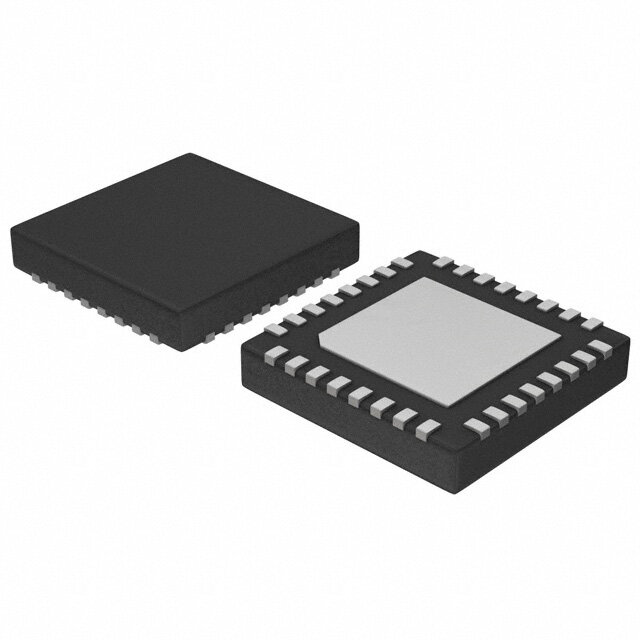

ATSAML11E16A-MFKPH
RoHS
RoHS compliant
RoHS compliantPackage 32-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
64KB FLASH 16KB SRAM 32 MHZ ARM
PDF
/
Buying Options
Total Price: USD $2.84
Unit Price: USD $2.8424
≥1 USD $2.8424
Inventory: 694
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 32-VFQFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TA
Series SAM L11
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 32
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Supply Voltage 3.3V
Terminal Pitch 0.5mm
JESD-30 Code S-XQCC-N32
Supply Voltage-Max (Vsup) 3.63V
Supply Voltage-Min (Vsup) 1.62V
Oscillator Type Internal
Number of I/O 25
Speed 32MHz
RAM Size 16K x 8
Voltage - Supply (Vcc/Vdd) 1.62V~3.63V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M23
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Clock Frequency 32MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 64KB 64K x 8
Connectivity I2C, LINbus, SPI, UART/USART
Bit Size 32
Data Converter A/D 10x12b; D/A 1x10b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels YES
EEPROM Size 2K x 8
On Chip Program ROM Width 8
Screening Level AEC-Q100; TS 16949
Dimensions
Height Seated (Max) 1mm
Length 5mm
Width 5mm
Compliance
RoHS Status ROHS3 Compliant
