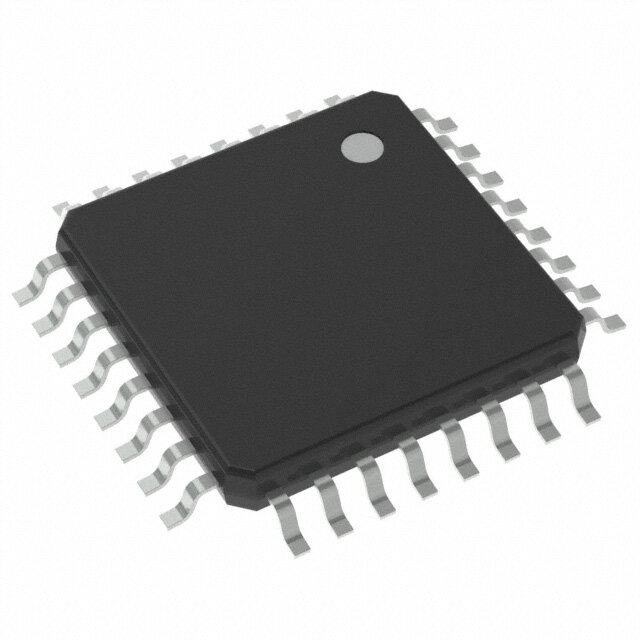

ATSAML11E16A-AUTKPH
RoHS
RoHS compliant
RoHS compliantPackage 32-TQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MICROCHIP - ATSAML11E16A-AUTKPH - 64KB Flash, 16KB SRAM, 32 MHz ARM Cortex-M23,TrustZone-M, Crypto, PTC, SERCOM, ADC, DAC, OPAMP, AC, Key Provisioned 32 TQFP 7x7x1mm T/R
PDF
/
Buying Options
Total Price: USD $2.97
Unit Price: USD $2.967015
≥1 USD $2.967015
≥10 USD $2.799067
≥100 USD $2.640632
≥500 USD $2.491153
≥1000 USD $2.350157
Inventory: 1539
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Surface Mount
Package / Case 32-TQFP
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series SAM L11
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 32
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Terminal Pitch 0.8mm
JESD-30 Code S-PQFP-G32
Supply Voltage-Max (Vsup) 1.2V
Supply Voltage-Min (Vsup) 0.9V
Oscillator Type Internal
Number of I/O 25
Speed 32MHz
RAM Size 16K x 8
Voltage - Supply (Vcc/Vdd) 1.62V~3.63V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M23
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Clock Frequency 32MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 64KB 64K x 8
Connectivity I2C, LINbus, SPI, UART/USART
Bit Size 32
Data Converter A/D 10x12b; D/A 1x10b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels YES
EEPROM Size 2K x 8
On Chip Program ROM Width 8
Screening Level TS 16949
Dimensions
Height Seated (Max) 1.2mm
Length 7mm
Width 7mm
Compliance
RoHS Status ROHS3 Compliant
