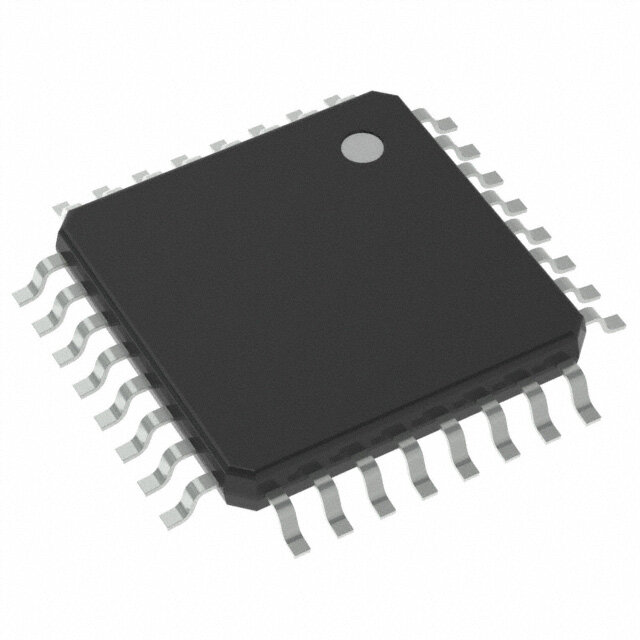

ATSAML11E15A-AF
RoHS
RoHS compliant
RoHS compliantPackage 32-TQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
ROHS3Compliant GULL WING QUAD CMOS Microcontroller -40C~125C TA 32MHz 1.2mm 8K x 8
PDF
/
Buying Options
Total Price: USD $3.02
Unit Price: USD $3.0184
≥1 USD $3.0184
≥10 USD $2.7632
≥100 USD $2.4992
≥500 USD $2.398
Inventory: 998
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7mm
Length 7mm
Height Seated (Max) 1.2mm
Technical
Screening Level AEC-Q100; TS 16949
On Chip Program ROM Width 8
EEPROM Size 2K x 8
DAC Channels YES
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 10x12b; D/A 1x10b
Bit Size 32
Connectivity I2C, LINbus, SPI, UART/USART
Program Memory Size 32KB 32K x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 32MHz
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Core Processor ARM? Cortex?-M23
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.62V~3.63V
RAM Size 8K x 8
Speed 32MHz
Number of I/O 25
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.62V
Supply Voltage-Max (Vsup) 3.63V
JESD-30 Code S-PQFP-G32
Base Part Number ATSAML11E
Terminal Pitch 0.8mm
Supply Voltage 3.3V
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Number of Terminations 32
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series SAM L11
Packaging Tray
Operating Temperature -40°C~125°C TA
Physical
Surface Mount YES
Package / Case 32-TQFP
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
