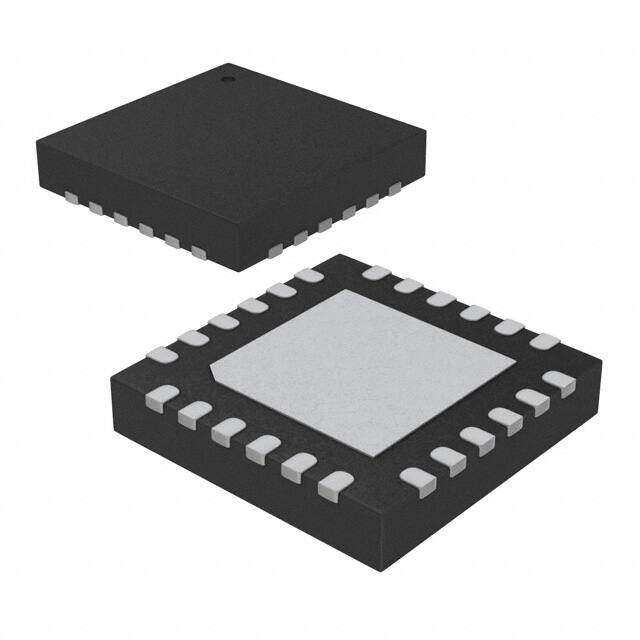

ATSAML11D15A-MFTKPH
RoHS
RoHS compliant
RoHS compliantPackage 24-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
32KB FLASH 8KB SRAM 32MHZ ARM CO
PDF
/
Inventory: 6490
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Surface Mount
Package / Case 24-VFQFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TA
Packaging Tape & Reel (TR)
Series SAM L11
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 24
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Terminal Pitch 0.5mm
JESD-30 Code S-XQCC-N24
Supply Voltage-Max (Vsup) 1.2V
Supply Voltage-Min (Vsup) 0.9V
Oscillator Type Internal
Number of I/O 17
Speed 32MHz
RAM Size 8K x 8
Voltage - Supply (Vcc/Vdd) 1.62V~3.63V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M23
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Clock Frequency 32MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 32KB 32K x 8
Connectivity I2C, LINbus, SPI, UART/USART
Bit Size 32
Data Converter A/D 5x12b; D/A 1x10b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels YES
EEPROM Size 2K x 8
On Chip Program ROM Width 8
Screening Level AEC-Q100; TS 16949
Dimensions
Height Seated (Max) 0.9mm
Length 4mm
Width 4mm
Compliance
RoHS Status ROHS3 Compliant
