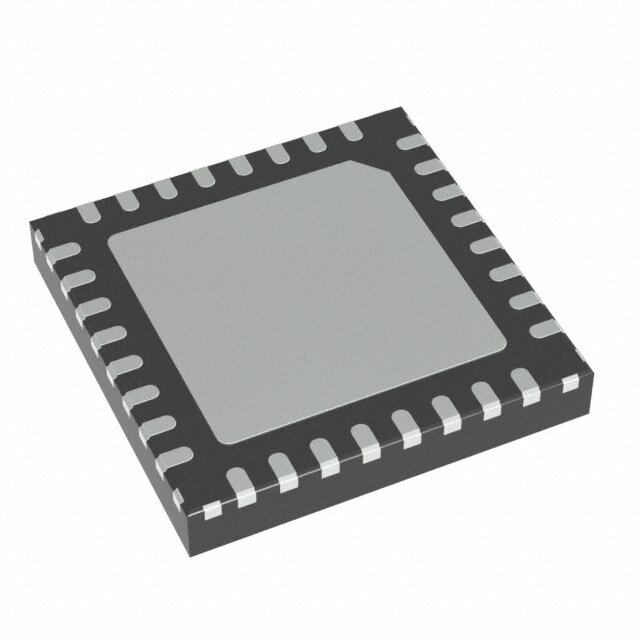

ATSAMHA0E15A-MZT-BVAO image
Favorite
ATSAMHA0E15A-MZT-BVAO image
Favorite

ATSAMHA0E15A-MZT-BVAO

Microchip Technology
RoHS
RoHS RoHS compliant
Package 32-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description IC MCU 32BIT 32KB FLASH
PDF
/
Inventory: 4321
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Surface Mount, Wettable Flank
Package / Case 32-VFQFN Exposed Pad
Surface Mount YES

Technical

Operating Temperature -40°C~115°C TC
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100, SAM HA0
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 32
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Supply Voltage 3.3V
Terminal Pitch 0.5mm
JESD-30 Code S-PQCC-N32
Supply Voltage-Max (Vsup) 3.63V
Supply Voltage-Min (Vsup) 2.7V
Oscillator Type Internal
Number of I/O 19
Speed 48MHz
RAM Size 4K x 8
Voltage - Supply (Vcc/Vdd) 0V~3.8V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M0+
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Clock Frequency 32MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 32KB 32K x 8
Connectivity I2C, LINbus SBC, SPI, UART/USART
Bit Size 32
Data Converter A/D 6x12b; D/A 1x10b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels YES
EEPROM Size 1K x 8
On Chip Program ROM Width 8
Screening Level AEC-Q100; TS 16949

Dimensions

Height Seated (Max) 0.9mm
Length 5mm
Width 5mm

Compliance

RoHS Status ROHS3 Compliant
