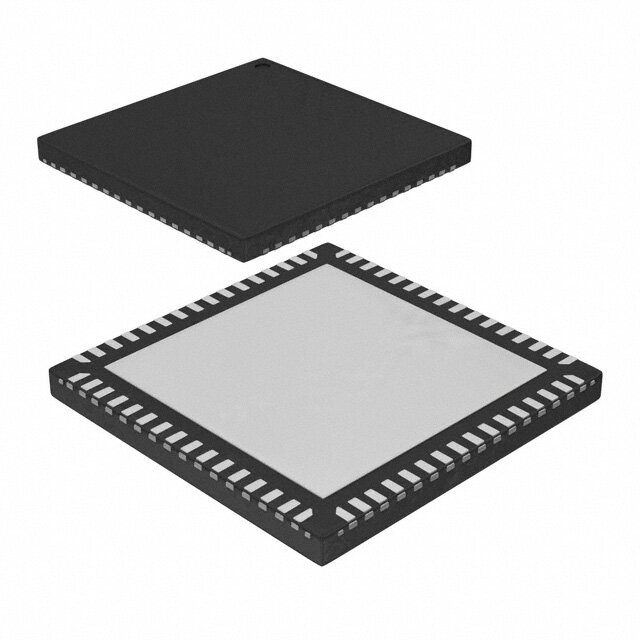

ATSAMG55J19A-MUT
RoHS
RoHS compliant
RoHS compliantPackage 64-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 512KB FLASH 64QFN
PDF
/
Buying Options
Total Price: USD $9.4
Unit Price: USD $9.39835
≥1 USD $9.39835
≥10 USD $7.71115
≥100 USD $7.4708
≥500 USD $7.2295
≥1000 USD $6.9882
Inventory: 7207
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 64-VFQFN Exposed Pad
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2016
Series SAM G55
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 64
Subcategory Microcontrollers
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Terminal Pitch 0.4mm
Frequency 120MHz
Base Part Number ATSAMG55J
JESD-30 Code S-XQCC-N64
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 3.6V
Power Supplies 1.8/3.3V
Interface I2C, I2S, SPI, UART, USART, USB
Memory Size 512kB
Oscillator Type Internal
Number of I/O 48
RAM Size 176K x 8
Voltage - Supply (Vcc/Vdd) 1.62V~3.6V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M4
Peripherals DMA, I2S, POR, PWM, WDT
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 512KB 512K x 8
Connectivity I2C, SPI, UART/USART, USB
Bit Size 32
Data Converter A/D 8x12b
Watchdog Timer Yes
Has ADC YES
DMA Channels YES
Data Bus Width 32b
PWM Channels NO
DAC Channels NO
Number of Timers/Counters 2
Core Architecture ARM
CPU Family CORTEX-M4F
Dimensions
Height Seated (Max) 0.9mm
Length 7.5mm
Compliance
RoHS Status ROHS3 Compliant
