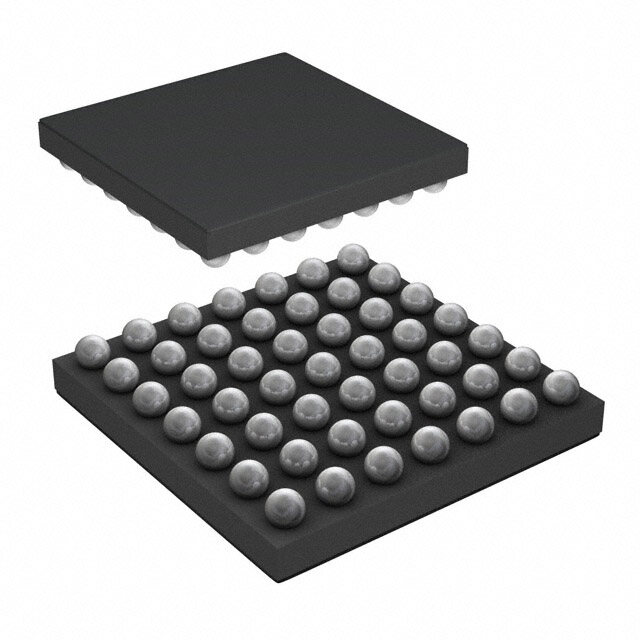

ATSAMG53G19B-UUT
RoHS
RoHS compliant
RoHS compliantPackage 49-WFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
ARM? Cortex?-M4 SAM G53 Microcontroller IC 32-Bit 48MHz 512KB (512K x 8) FLASH 49-WLCSP
PDF
/
Inventory: 8646
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3.072mm
Length 3.072mm
Height Seated (Max) 0.533mm
Technical
CPU Family CORTEX-M4F
Core Architecture ARM
ROM (words) 131072
DAC Channels NO
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 8x12b
Bit Size 32
Connectivity I2C, SPI, UART/USART
Program Memory Size 512KB 512K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals DMA, I2S, POR, PWM, WDT
Core Processor ARM? Cortex?-M4
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.62V~3.6V
RAM Size 96K x 8
Number of I/O 38
Oscillator Type Internal
Memory Size 512kB
Interface I2C, SPI, UART, USART
Supply Voltage-Min (Vsup) 1.62V
Power Supplies 1.8/3.3V
Supply Voltage-Max (Vsup) 3.6V
Qualification Status Not Qualified
JESD-30 Code S-PBGA-B49
Base Part Number ATSAMG53
Frequency 48MHz
Terminal Pitch 0.4mm
Supply Voltage 3.3V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Microcontrollers
Number of Terminations 49
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series SAM G53
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 49-WFBGA, WLCSP
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 28 Weeks
