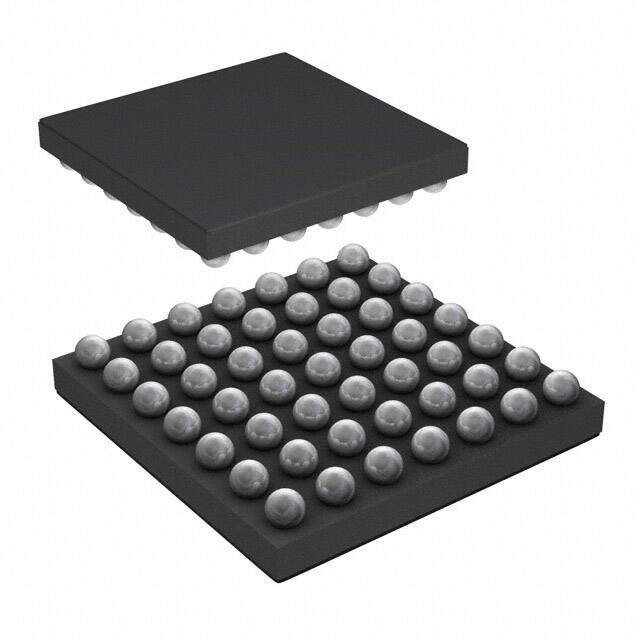

ATSAMG53G19A-UUT
RoHS
RoHS compliant
RoHS compliantPackage 49-UFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MCU 32-Bit SAM G ARM Cortex M4 RISC 512KB Flash 1.8V 49-Pin WLCSP T/R
PDF
/
Buying Options
Total Price: USD $2.38
Unit Price: USD $2.38165
≥1 USD $2.38165
≥10 USD $1.95415
≥100 USD $1.89335
≥500 USD $1.83255
≥1000 USD $1.77175
Inventory: 1661
Minimum: 1
-
+
Technical Details
Technical
Core Architecture ARM
CPU Family CORTEX-M4F
Number of ADC Channels 8
ROM (words) 131072
Number of Timers/Counters 6
PWM Channels YES
Data Bus Width 32b
DMA Channels YES
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 8x12b
Bit Size 32
Connectivity I2C, SPI, UART/USART
Program Memory Size 512KB 512K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals DMA, I2S, POR, PWM, WDT
Core Processor ARM? Cortex?-M4
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.62V~3.6V
RAM Size 96K x 8
Number of I/O 38
Oscillator Type Internal
Memory Size 512kB
Interface I2C, I2S, SPI, UART, USART
Operating Supply Voltage 1.8V
Qualification Status Not Qualified
Base Part Number ATSAMG53
Frequency 48MHz
Terminal Pitch 0.4mm
Supply Voltage 3.3V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Microcontrollers
Number of Terminations 49
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series SAM G53
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Dimensions
Height Seated (Max) 0.533mm
Length 3.072mm
Compliance
RoHS Status ROHS3 Compliant
Physical
Number of Pins 49
Package / Case 49-UFBGA, WLCSP
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Copper, Silver, Tin
Supply Chain
Factory Lead Time 10 Weeks
