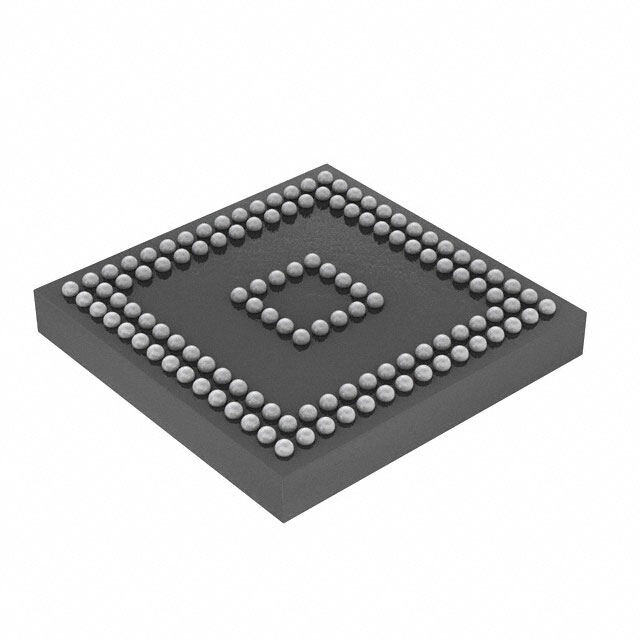

ATSAME54P19A-CTFT
RoHS
RoHS compliant
RoHS compliantPackage 120-TFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 512KB FLASH 120BGA
PDF
/
Inventory: 8526
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Physical
Mounting Type Surface Mount
Package / Case 120-TFBGA
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TA
Packaging Tape & Reel (TR)
Series SAM E54
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 120
Terminal Finish Matte Tin (Sn)
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Reach Compliance Code compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-PBGA-B120
Supply Voltage-Max (Vsup) 3.63V
Supply Voltage-Min (Vsup) 1.71V
Oscillator Type Internal
Number of I/O 99
Speed 120MHz
RAM Size 192K x 8
Voltage - Supply (Vcc/Vdd) 1.71V~3.63V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M4F
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Clock Frequency 48MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 512KB 512K x 8
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB
Bit Size 32
Data Converter A/D 32x12b; D/A 2x12b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels YES
On Chip Program ROM Width 8
Screening Level AEC-Q100; ISO/TS-16949
Dimensions
Height Seated (Max) 1.2mm
Length 8mm
Width 8mm
Compliance
RoHS Status RoHS Compliant
