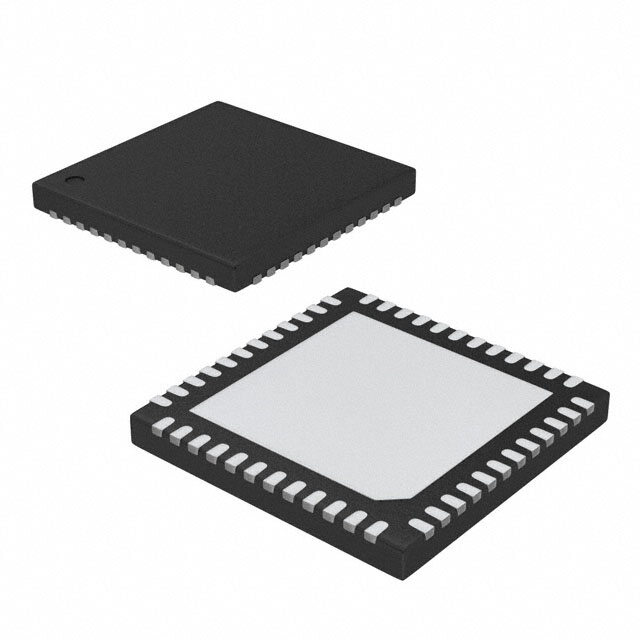

ATSAMD21G17L-MFT
RoHS
RoHS compliant
RoHS compliantPackage 48-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
RoHS Compliant NO LEAD QUAD CMOS Microcontroller -40C~125C TA 32MHz 0.9mm 16K x 8
PDF
/
Inventory: 4651
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 7mm
Length 7mm
Height Seated (Max) 0.9mm
Technical
Screening Level TS 16949
On Chip Program ROM Width 8
DAC Channels YES
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 18x12b; D/A 1x10b
Bit Size 32
Connectivity I2C, LINbus, SPI, UART/USART
Program Memory Size 128KB 128K x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 32MHz
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Core Processor ARM? Cortex?-M0+
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.62V~3.63V
RAM Size 16K x 8
Speed 48MHz
Number of I/O 38
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.62V
Supply Voltage-Max (Vsup) 3.63V
JESD-30 Code S-XQCC-N48
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code compliant
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Terminal Finish Matte Tin (Sn)
Number of Terminations 48
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Series Automotive, AEC-Q100, SAM D21G
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TA
Physical
Surface Mount YES
Package / Case 48-VFQFN Exposed Pad
Mounting Type Surface Mount, Wettable Flank
Supply Chain
Factory Lead Time 7 Weeks
